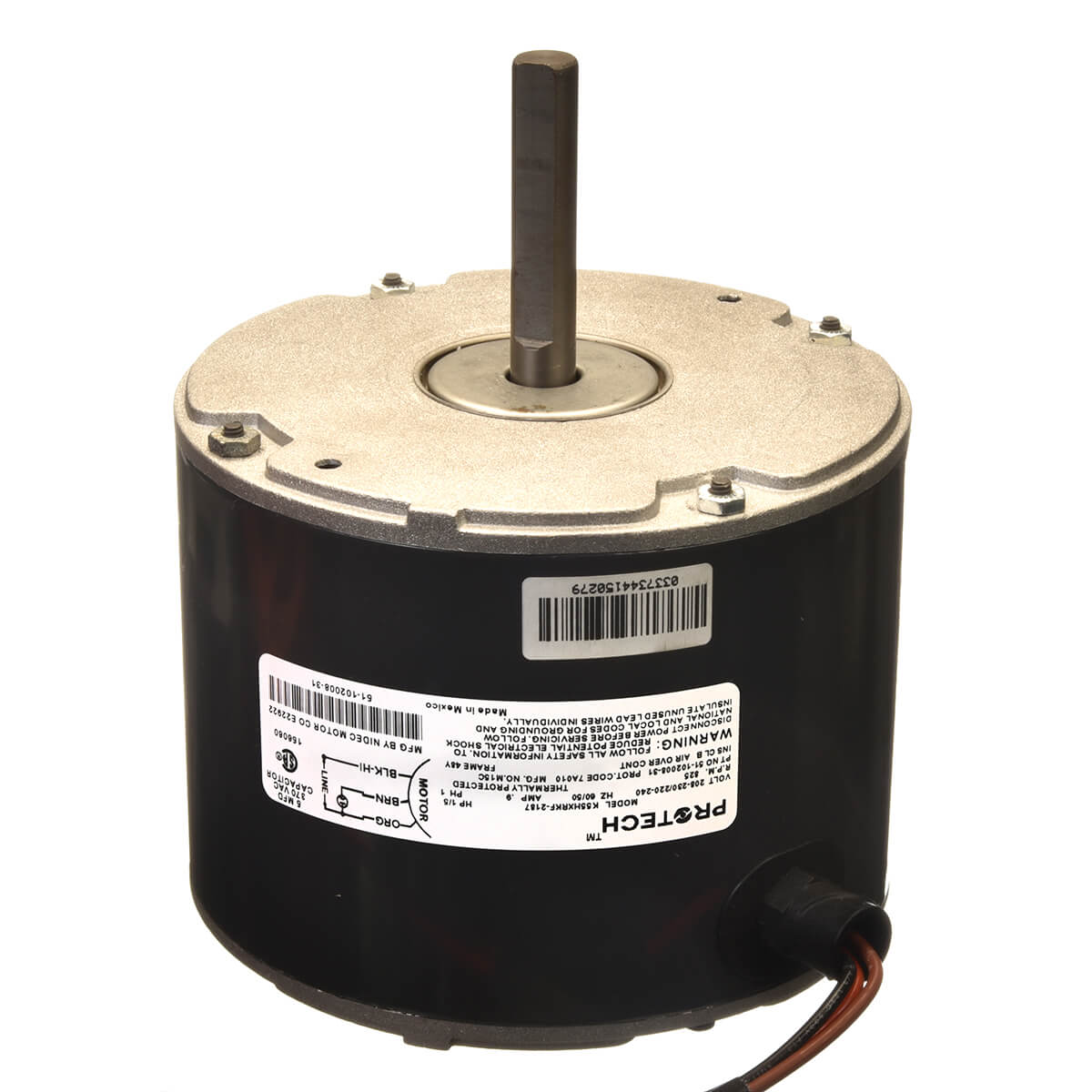

Rheem 51-102008-31 OEM One-Speed Direct Drive Outdoor Condenser Motor 1/5 HP 208/230V

Product Description

The Rheem OEM One-Speed Direct Drive Outdoor Condenser Motor, model 51-102008-31, is designed for efficient performance in outdoor cooling systems. This motor operates on 208 to 230 volts and features a speed of 825 revolutions per minute (RPM). It is suitable for use with RP17 series heat pumps.

• Power rating: 1/5 HP
• Mounting type: Shell Band/End Boss
• Rotation: Counterclockwise (CCW)

Product Highlights

This condenser motor is built for reliability and optimal airflow in outdoor HVAC applications.

Product Information

Standard Information

• Manufacturer: Rheem
• MPN: 51-102008-31

Technical Specifications

• Voltage Rating: 208 to 230V
• Horse Power: 1/5 HP
• RPM: 825
• Phase: 1-Phase
• Frame: 48
• Mounting: Shell Band/End Boss
• Shaft Diameter: 1/2 inch
• Shaft Length: 2-1/2 inches
• Capacitor: 5 uF
• No Load RPM: 825
• Amperage Rating: 0.9A Full Load
• Overall Length: 14-1/2 inches
• Frequency Rating: 50/60 Hz
• Number of Speeds: 1
