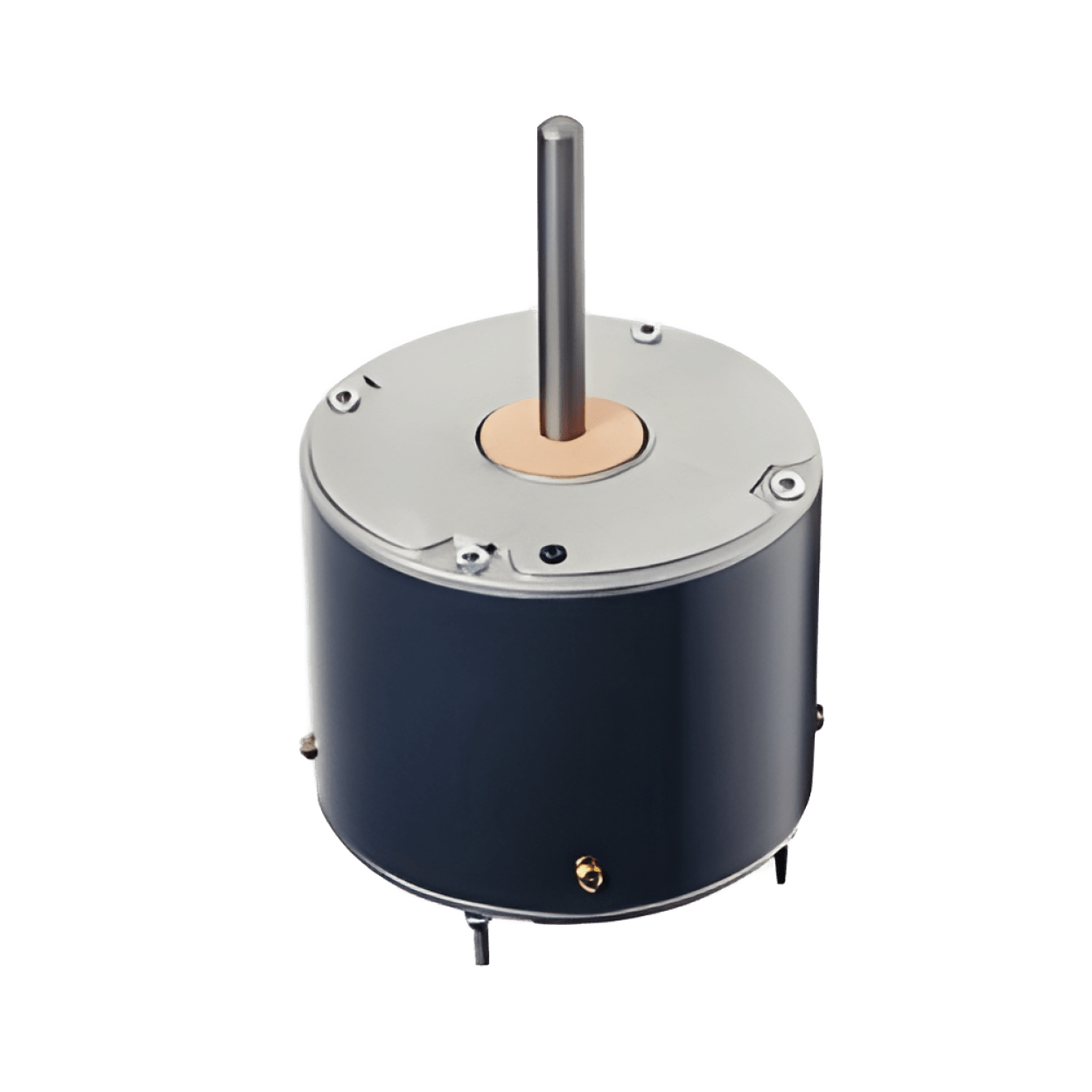

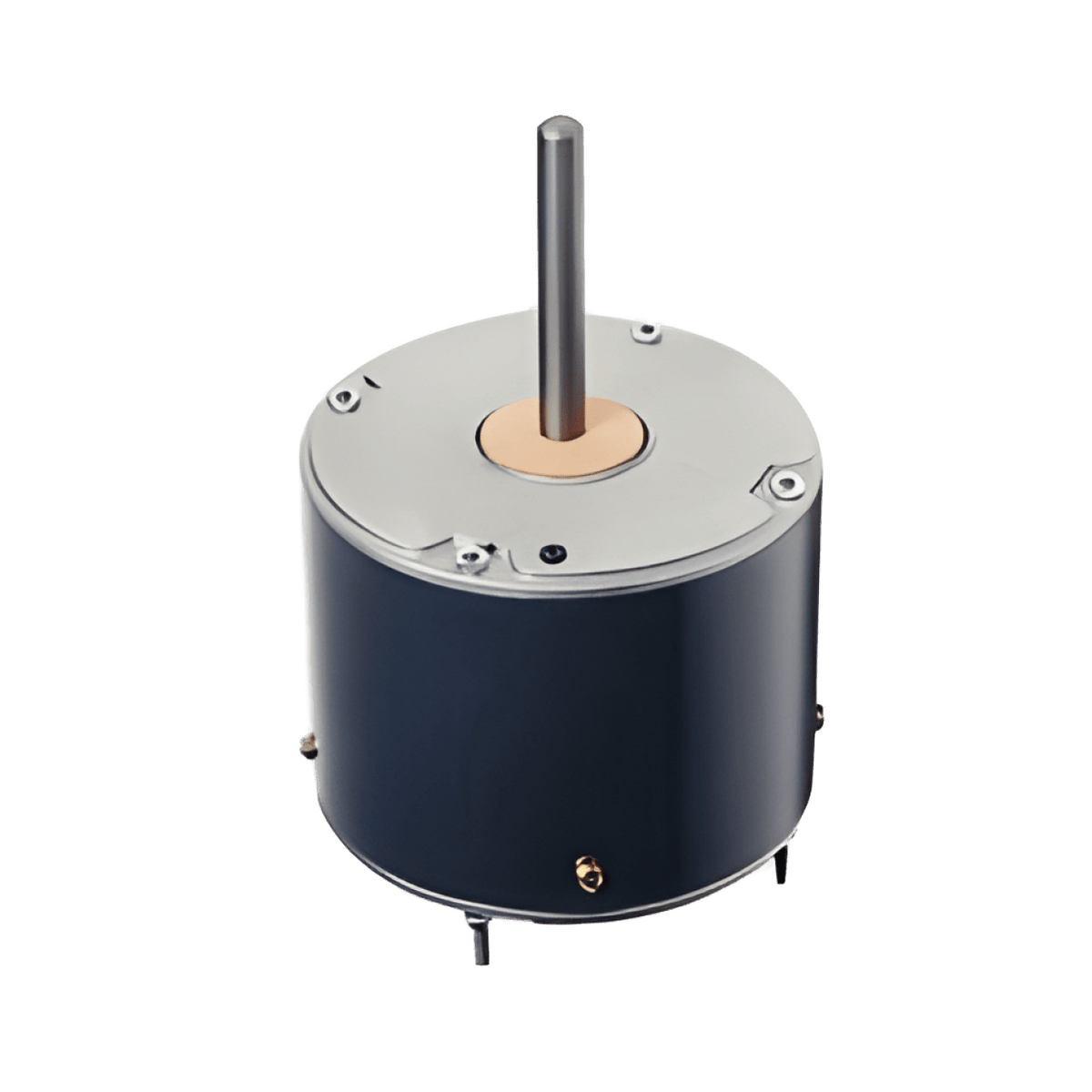

Rheem 51-102008-29 OEM One-Speed Direct Drive Outdoor Condenser Motor 1/5 HP 208/230V

Product Description

The Rheem 51-102008-29 is a one-speed direct drive outdoor condenser motor designed for efficiency and performance. Suitable for various HVAC applications, this motor operates on 208 to 230 volts and provides a horsepower rating of 1/5 HP, making it ideal for heating and cooling systems.

• Voltage Rating: 208 to 230V
• No Load RPM: 825
• Phase: 1-Phase

Product Highlights

This condenser fan motor is built with a shell band and end boss mounting design for easy installation. It is compatible with RP17 series heat pumps and provides consistent performance in various environments.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: 51-102008-29

Technical Specifications

• Horse Power: 1/5 HP
• RPM: 825
• Amperage Rating: 1A Full Load
• Mounting: Shell Band/End Boss
• Shaft Length: 2-3/16 inch
• Shaft Diameter: 1/2 inch
• Frequency Rating: 50/60 Hz
• Overall Length: 13.2 inch
• Rotation: CCW
• Frame: 48
• Bearing Type: Ball
