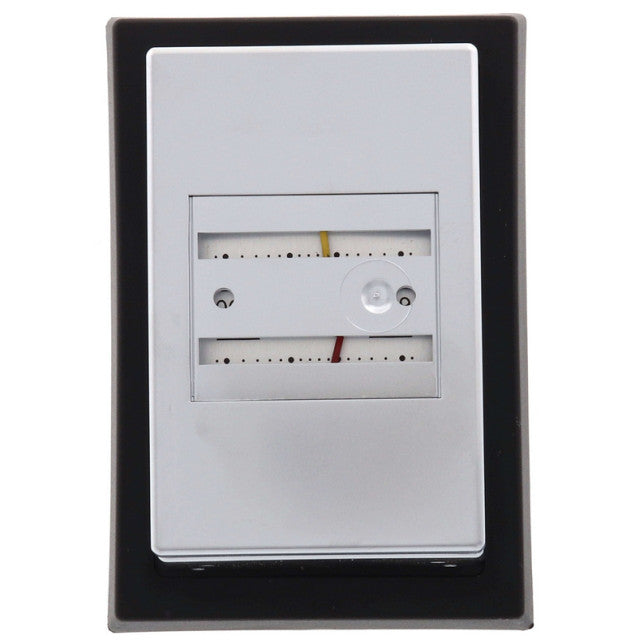

Resideo TP970A2145 TP970 Series Pneumatic Thermostat Direct Acting 3-1/4 H x 2 W x 1-5/8 D

Product Description

The Resideo TP970A2145 is a pneumatic thermostat designed for reliable temperature control in heating systems. This model operates as a direct acting unit and features a convert-a-stat kit, including a satin chrome cover for a modern touch.

• Pilot-operated design for high capacity.
• Wall mounted for easy installation.
• Includes thermostat, small wall plate, and satin chrome cover.

Product Highlights

This thermostat features a wide throttling range for optimal performance in heating applications, ensuring stable temperature control throughout the year.

Product Information

Standard Information

• Manufacturer: Resideo
• Brand: Honeywell

Technical Specifications

• Action: Direct Acting
• Airflow Usage: 0.011 scfm
• Application: Heating
• Setpoint Temperature Range: Fifty-nine degrees Fahrenheit to ninety degrees Fahrenheit
• Dimension: Three and one-fourth inches H x two inches W x one and five-eighths inches D
• Includes: Thermostat, small wall plate, and satin chrome cover
• Maximum Safe Operating Pressure: Twenty-five psi
• Mounting: Wall Mount
• Number of Pipe: Two
• Operating Ambient Temperature Range: One hundred degrees Fahrenheit maximum
• Sensor Element: Bimetal
• Setpoint: Single
• Storage Temperature Range: One hundred fifty degrees Fahrenheit maximum
• Throttling Range: Two degrees Fahrenheit to ten degrees Fahrenheit (Factory Set four degrees Fahrenheit)
