RESIDEO T87K-1007 T87K Series Round Thermostat Non-Programmable

Product Description

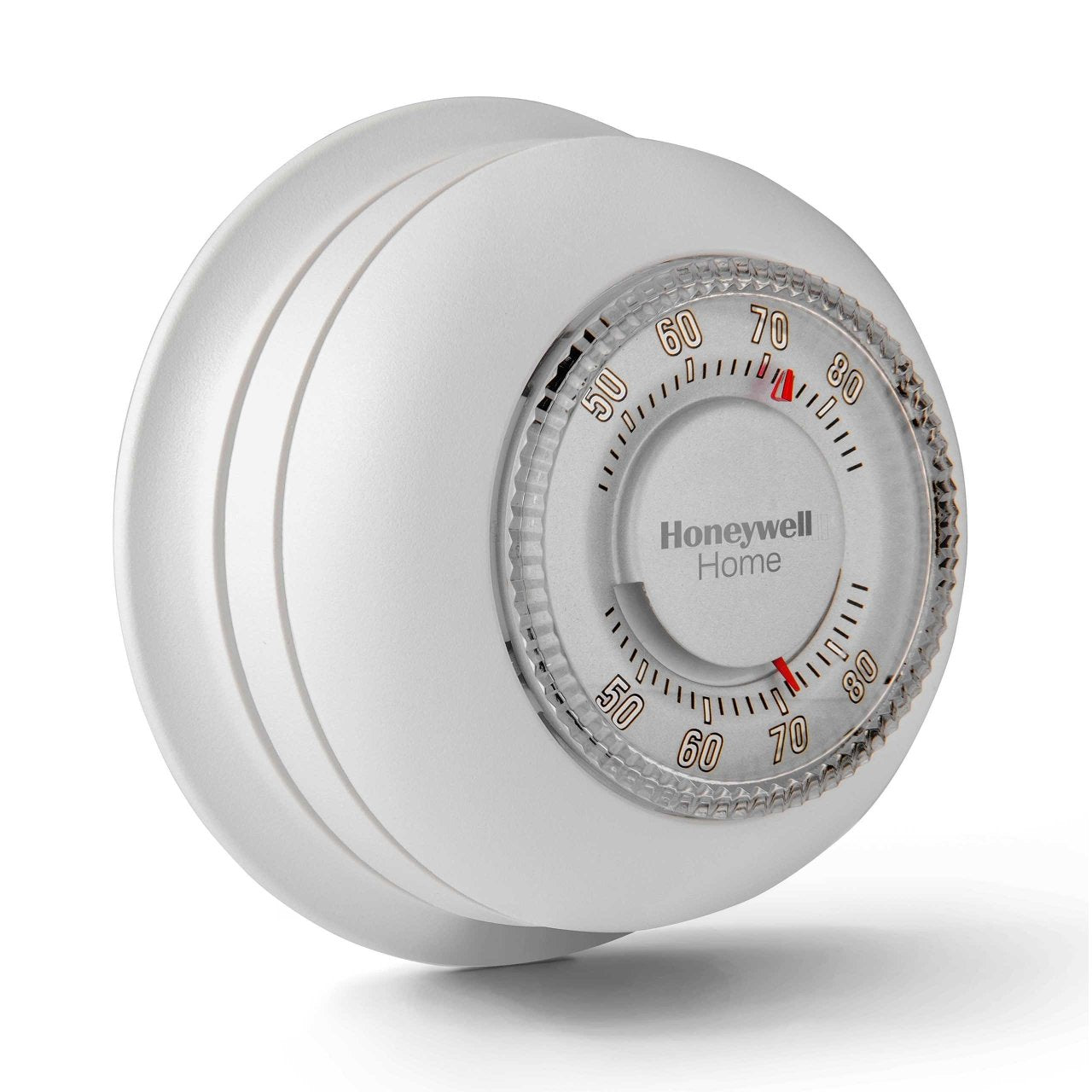

The RESIDEO T87K-1007 is a non-programmable round thermostat designed for heating applications. The unit features a mercury-free design and operates effectively with one heat stage and no cooling. The diameter of this thermostat is three and eleven-sixteenths inches, ensuring a compact fit for a variety of installation scenarios.

• Manual Operation
• Compatible with heat only systems
• Adjustable cycles per hour

Product Highlights

This thermostat is ideal for homeowners and HVAC professionals. It offers easy installation and straightforward usage.

Product Information

Standard Information

• Manufacturer: RESIDEO
• MPN: T87K-1007

Technical Specifications

• Accuracy: +-1°F (+-0.5°C)
• Application: Heat Only
• Color: Premier White
• Cycles per Hour: Adjustable 1, 3, 5, 9
• Dimension: 3-11/16 Diameter x 1-3/4 Depth
• Electrical Rating Heating Current: 0.02 A to 1.0 A running
• Frequency: 50/60 Hz
• Mounting: Round
• Operating Humidity Range: 5% to 90% RH, Non-Condensing
• Sensor Element: Thermistor
• Setting Temperature Range: 40°F to 90°F
• Switch Type: Relay
• Terminal Designation: R, W, Y
• Voltage: 20 to 30 Vac
• Stages: 1 Heat
