Product Description

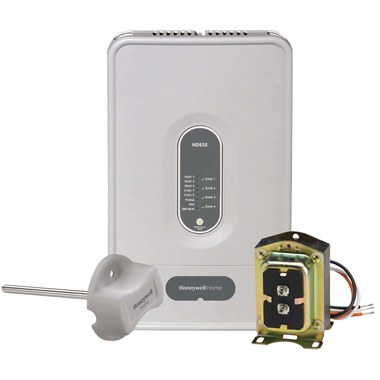

The RESIDEO HZ432K/U is a TrueZONE Zoning Control Kit designed for efficient HVAC system management. It includes the HZ432 Zone Control Panel, AT140 Transformer, and C7735A Discharge Air Temperature Sensor. This kit is suitable for conventional, heat pump, or dual fuel applications, accommodating up to thirty-two zones.
- Compatible with single-stage and multi-stage heating and cooling systems.
- Expandable up to thirty-two zones with the TotalZone Add-A-Zone Panel.
- Allows for wireless zone control when used with THM4000R1000 Wireless Adapter.
Product Highlights
This zoning control kit offers advanced features for HVAC optimization and supports multiple applications. It provides flexible installation and operation for various heating and cooling systems.
Product Information
Standard Information
-
Brand: RESIDEO
-
Manufacturer: RESIDEO
Technical Specifications
-
Stages: 3 Heat / 2 Cool
-
Voltage: 24 VAC
-
Contact Rating @ 24 Vac: 8.5 VA Maximum
-
Number of Zones: 4 Expandable
-
Frequency: 50/60 Hz
-
Operating Ambient Temperature Range: -40 degrees to 165 degrees Fahrenheit
-
Operating Humidity Range: 5% to 90% RH Non-Condensing
-
Shipping Ambient Temperature Range: -20 degrees to 150 degrees Fahrenheit
-
Includes: HZ432 Zone Control Panel, AT140 Transformer, C7735A Discharge Air Temperature Sensor
