RESIDEO HZ322K/U TrueZONE Zoning Control Kit 2H/2C

Product Description

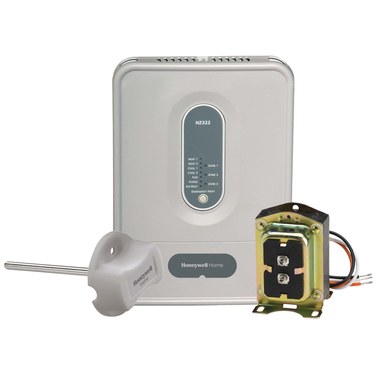

The RESIDEO HZ322K/U is a comprehensive zoning control kit designed for both conventional and heat pump HVAC applications. This kit includes the HZ322 Zone Control Panel, AT140 Transformer, and C7735A Discharge Air Temperature Sensor, supporting up to three zones. It is suitable for systems with up to two heating and two cooling stages.

• Easy-to-navigate installer setup with digital display
• Compatible with various heating systems including gas, oil, and electric
• Includes components for straightforward installation and operation

Product Highlights

The system features variable-speed fan control and RedLINK technology for wireless operation when paired with a compatible adapter. Its user-friendly interface and robust build ensure reliable performance.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: HZ322K/U

Technical Specifications

• Voltage: 24 VAC
• Stages: 2 Heat/2 Cool
• Number of Zones: 3
• Operating Ambient Temperature Range: -40 degrees F to 165 degrees F
• Operating Humidity Range: 5% to 90% RH Non-Condensing
• Frequency: 50/60 Hz
• Contact Rating @ 24 VAC: 7.5 VA Maximum
• Includes: HZ322 Zone Control Panel, AT140 Transformer, C7735A Discharge Air Temperature Sensor
