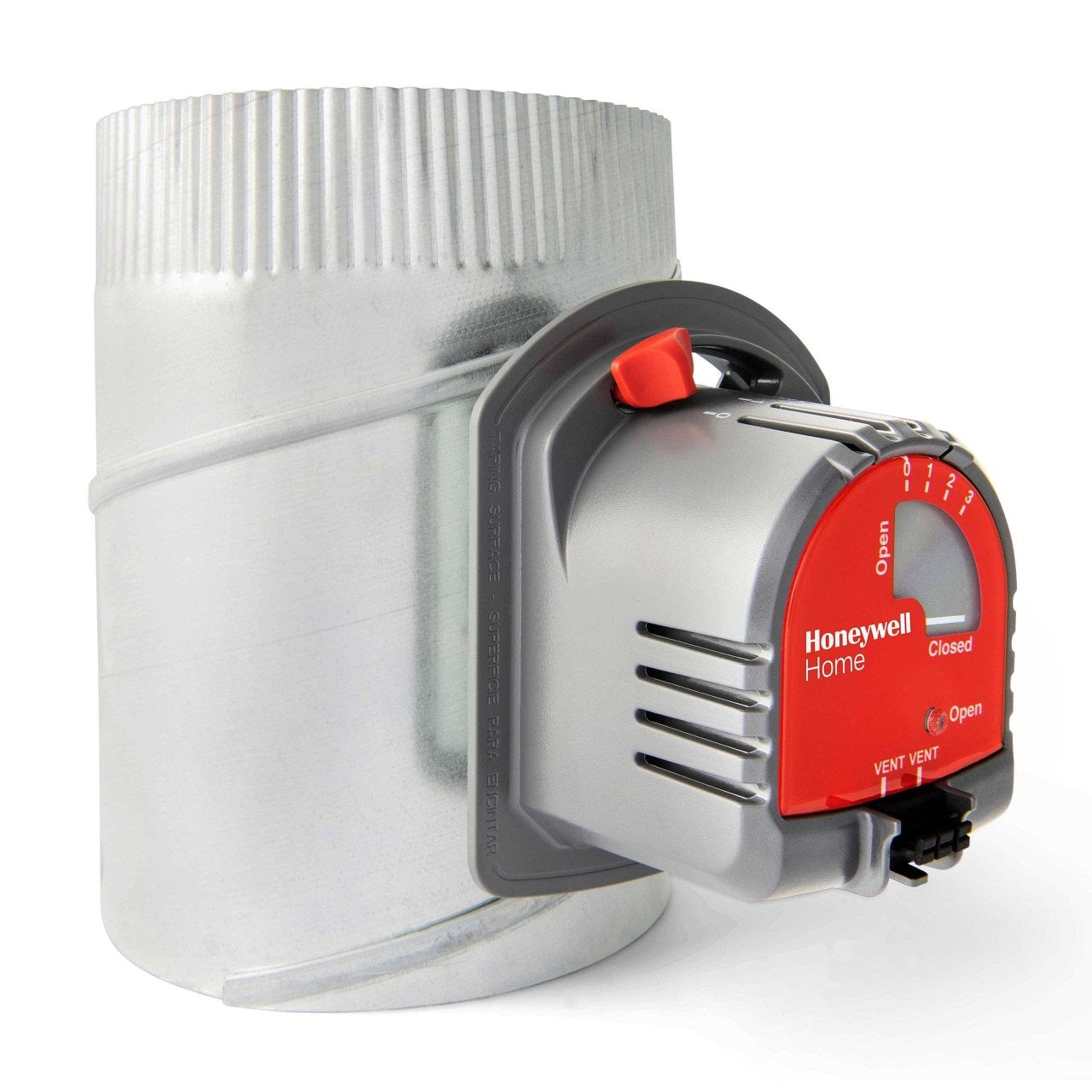

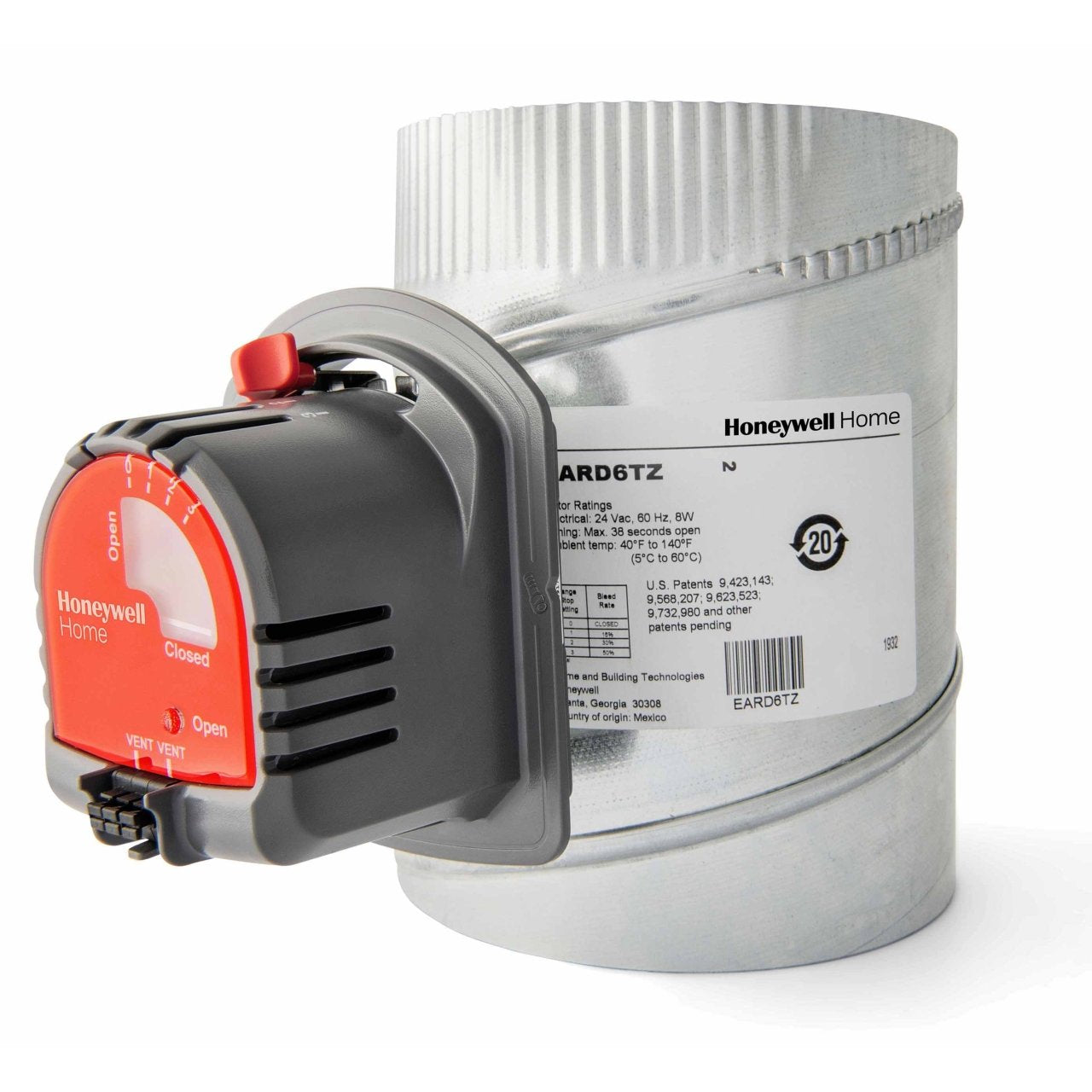

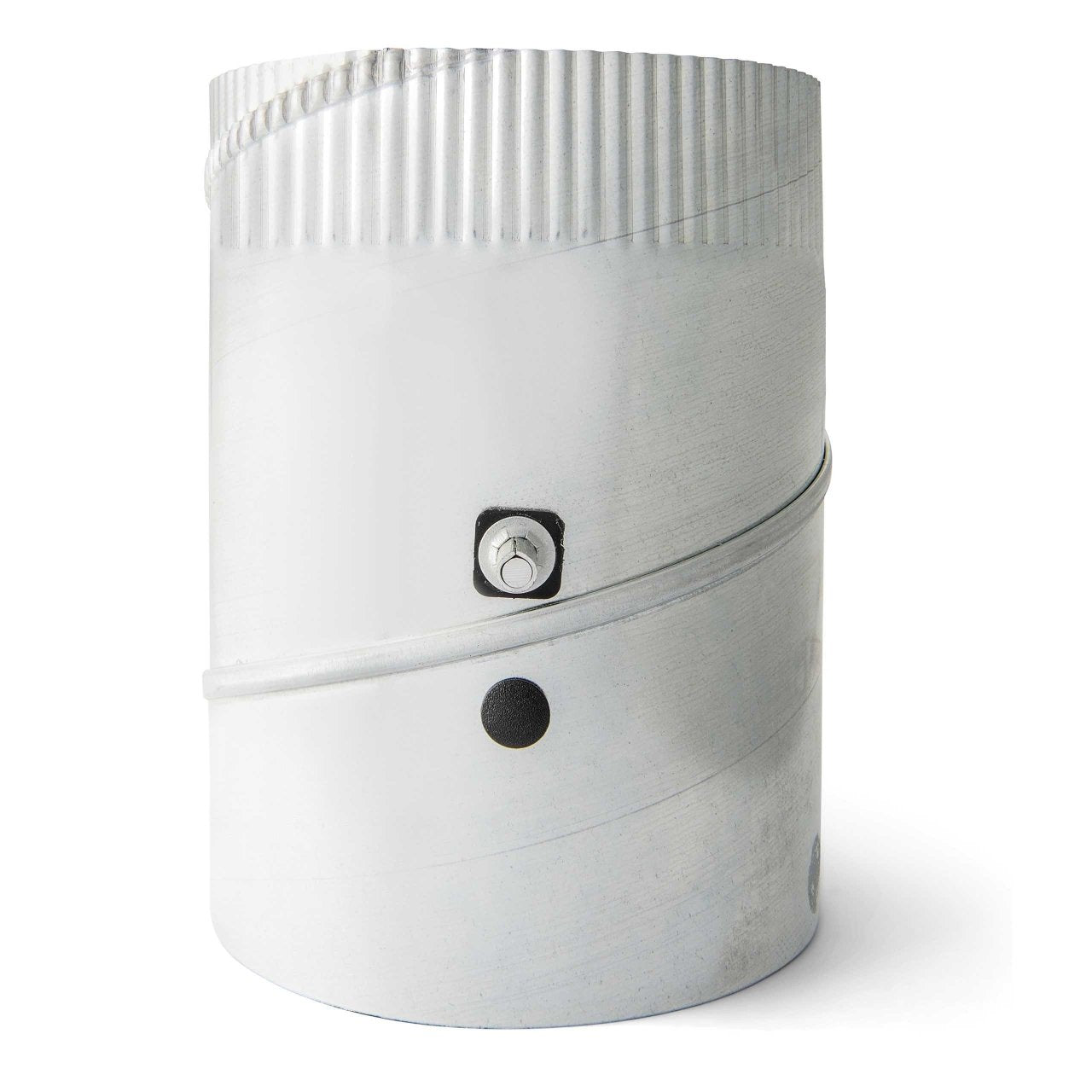

RESIDEO EARD6TZ/U Honeywell Home-Resideo TrueZONE Fresh Air Damper 6 Inches

Product Description

The RESIDEO EARD6TZ/U Honeywell Home-Resideo TrueZONE Fresh Air Damper is designed to manage the circulation of air within your HVAC system. This six-inch damper delivers fresh air into various zones of your home, enhancing ventilation and providing combustion makeup air. It is made from durable galvanized steel and integrates a 24V spring-return actuator for effective control.

• Power Open/Spring Return
• Minimal Leakage
• Galvanized Steel Construction

Product Highlights

The damper is essential for maintaining airflow and comfort in zoned systems, ensuring efficient air distribution throughout different areas.

Product Information

Standard Information

• Condition: New
• Type: Damper

Technical Specifications

• UPC: 085267690423
• Maximum Air Flow: 160 CFM
• Product Diameter: 6 inches
• Warranty: 5 Years
• Damper Duct Shape Type: Round
• Damper Type: Zone
• Application: Zone Damper
• Damper Material: Galvanized Steel
• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Blade Material: Galvanized Steel
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Position Indicator Type: LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
• Actuator Frequency: 60 HZ
• Airflow (Min): 50 CFM
