Resideo ARD9TZ/U 9-inch Automatic Round Damper

Product Description

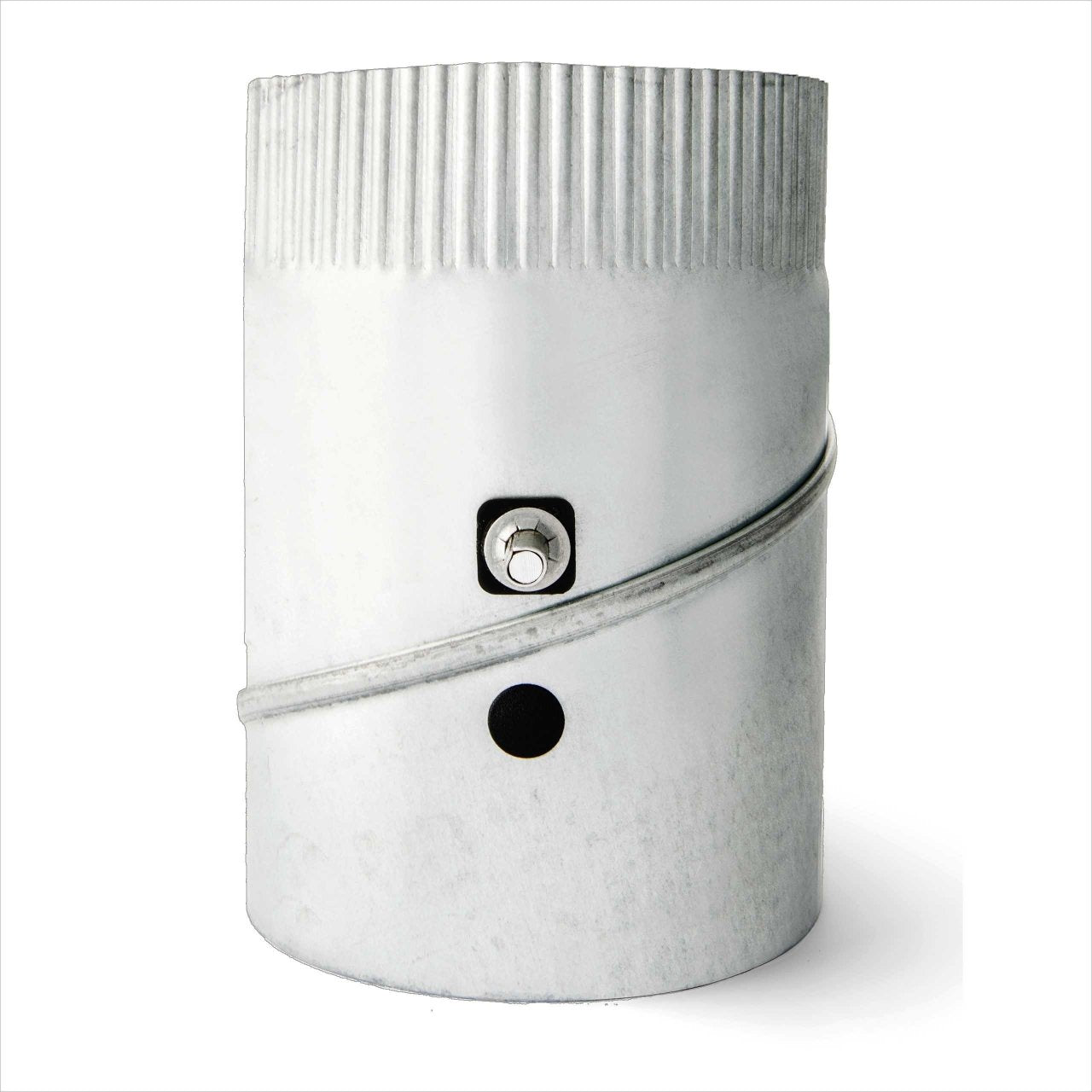

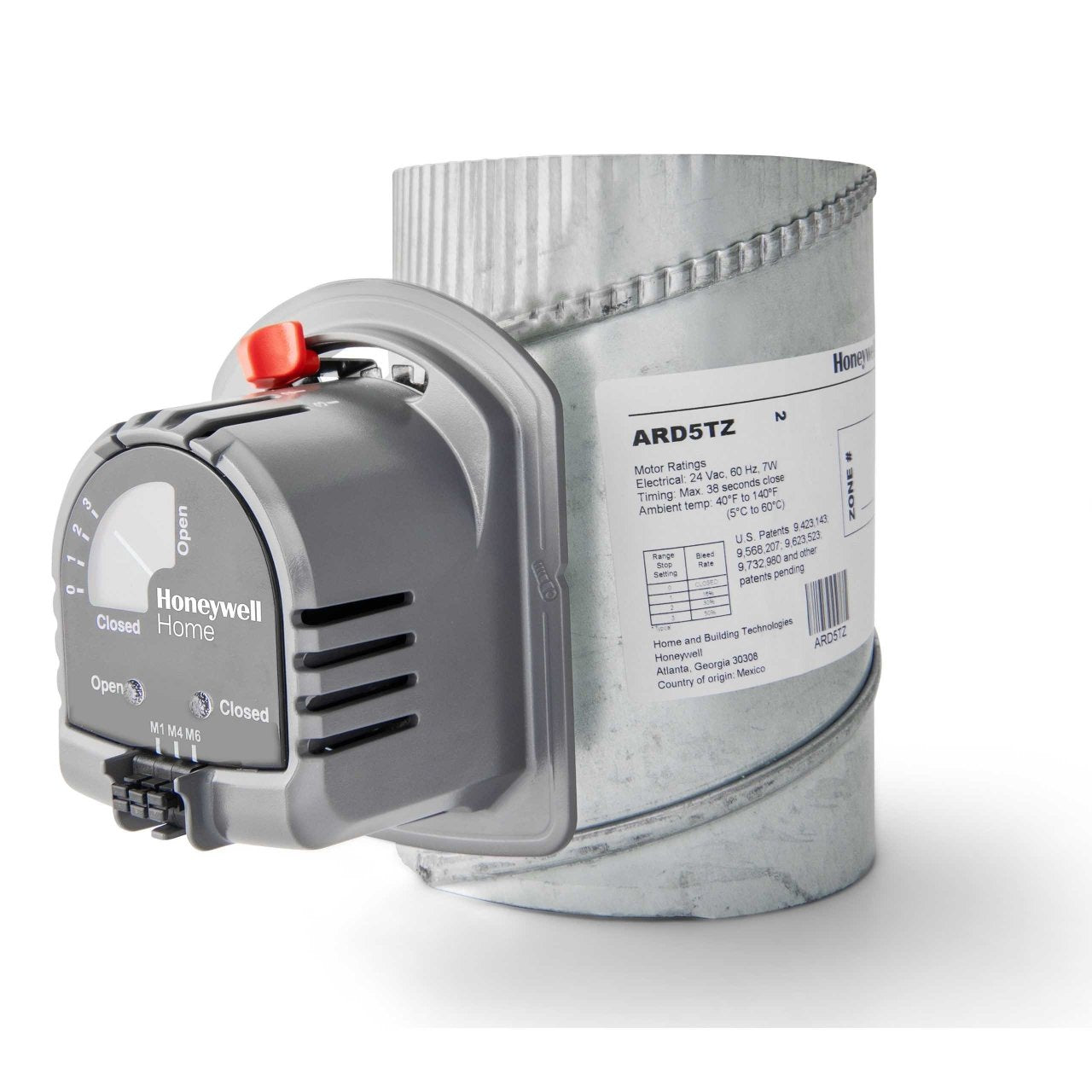

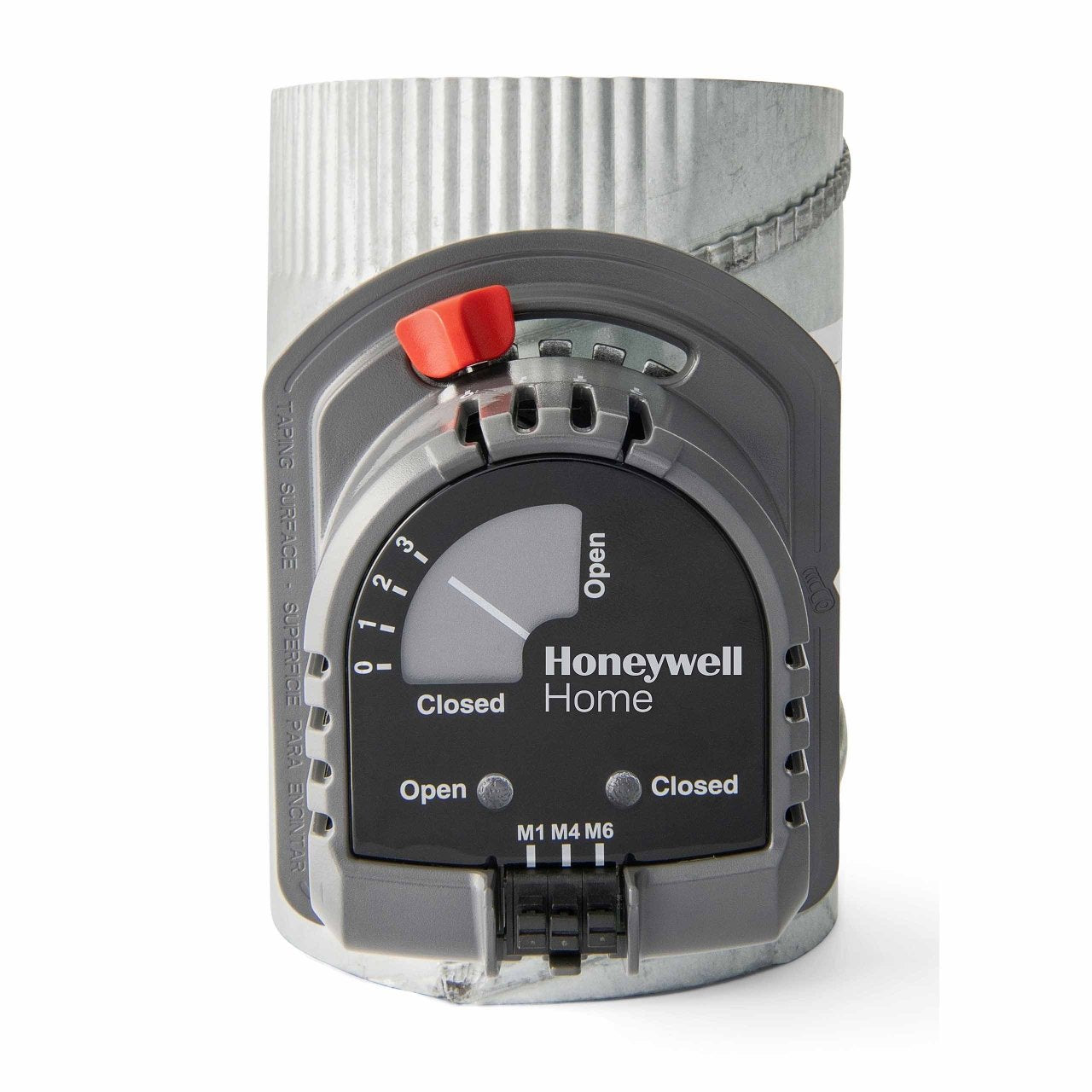

The Resideo ARD9TZ/U is a nine-inch automatic round damper designed for HVAC systems. Made from galvanized steel, this single-blade damper has a power-close and spring-open mechanism to maintain minimal air leakage. It effectively controls air circulation in zoned heating, cooling, and ventilation applications.

• Galvanized steel construction minimizes leakage.
• Easy two-wire installation with fail-safe, normally open operation.
• Adjustable range stops for simplified usage.

Product Highlights

This damper is suitable for zone applications and integrates well into various HVAC systems, ensuring efficient air management.

Product Information

Standard Information

• Damper Duct Shape Type: Round
• Damper Type: Zone

Technical Specifications

• Damper Material: Galvanized Steel
• Warranty: 1 Year
• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
