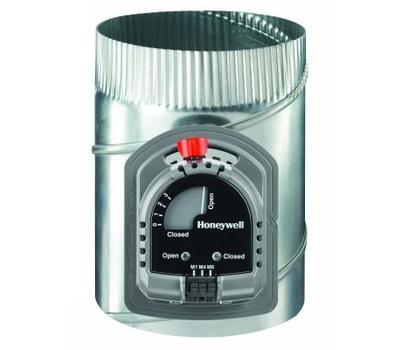

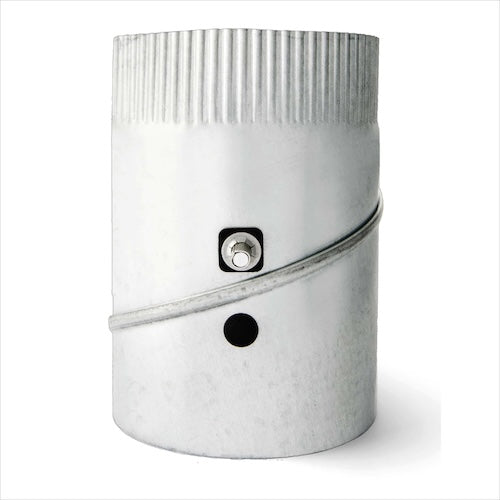

RESIDEO ARD8TZ/U TrueZONE 8 in. Galvanized Steel Auto Damper

Product Description

RESIDEO ARD8TZ/U is an automatic round damper designed for HVAC systems. This product is adept at controlling air circulation in heating, cooling, and ventilation applications. The damper features a galvanized steel construction that ensures durability and minimal leakage.

• Designed for low leakage and efficient airflow control.
• Power closed and spring return open mechanism for reliable operation.
• Field convertible for use in independent zones or fresh air intake.

Product Highlights

This damper's design allows for adjustable closed position range stops, enhancing its functionality in various setups.

Product Information

Standard Information

• Model: ARD8TZ/U
• Manufacturer: RESIDEO
• Part Number: 243001
• Voltage Rating: 24 V dc
• Gauge: 24 ga

Technical Specifications

• Shape: Round
• Finish: Galvanized
• Weight: 4.4 lb.
• Material: Steel
• For Use With: Circulating air in heating, cooling, ventilating systems
• Selling Size: 8 in
• Actuator Type: Auto
• Maximum Differential Pressure: 1 in WC
• Maximum Operating Temperature: +140 deg F
• Minimum Operating Temperature: +40 deg F
