Resideo ARD16TZ/U Automatic Round Damper 16 inch

Product Description

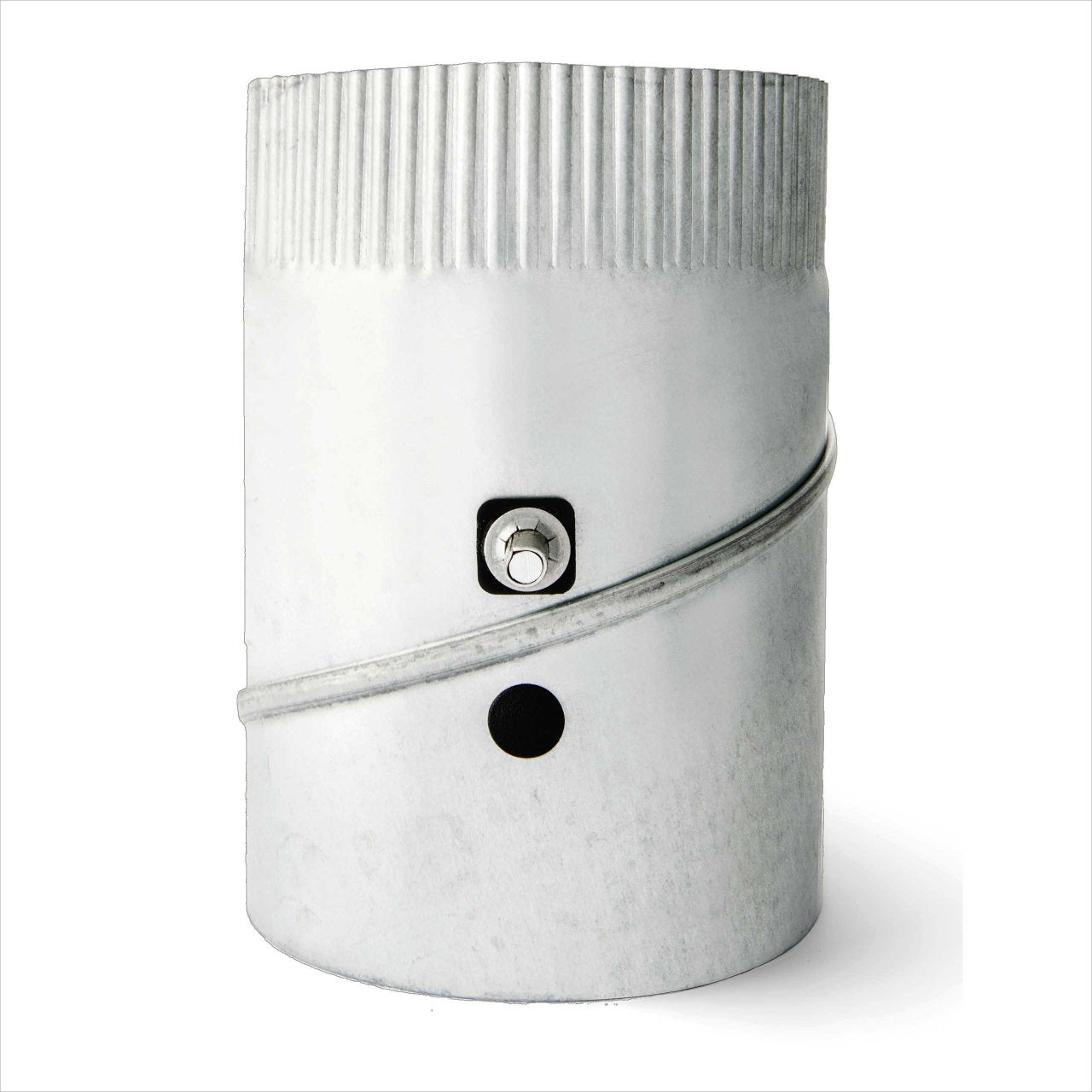

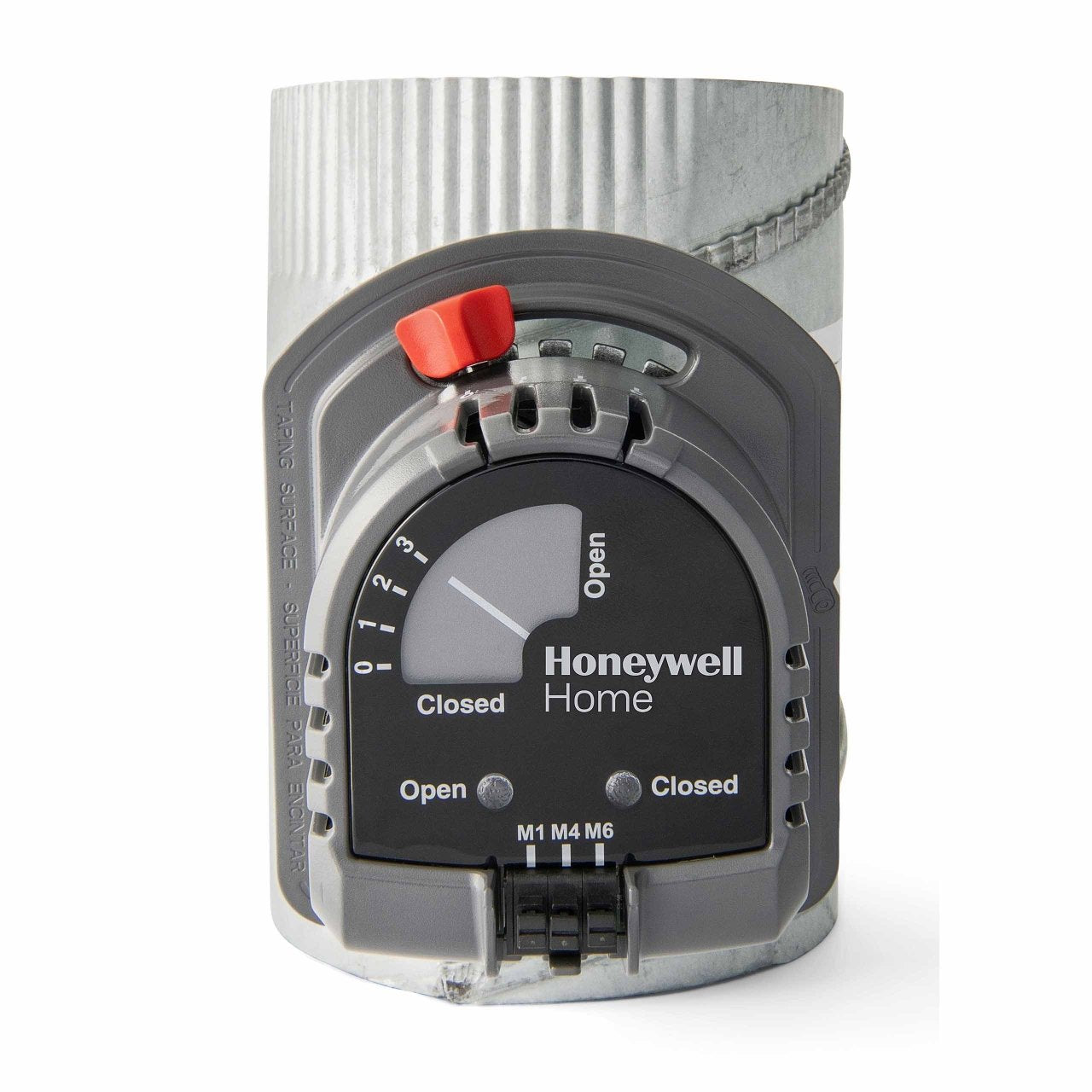

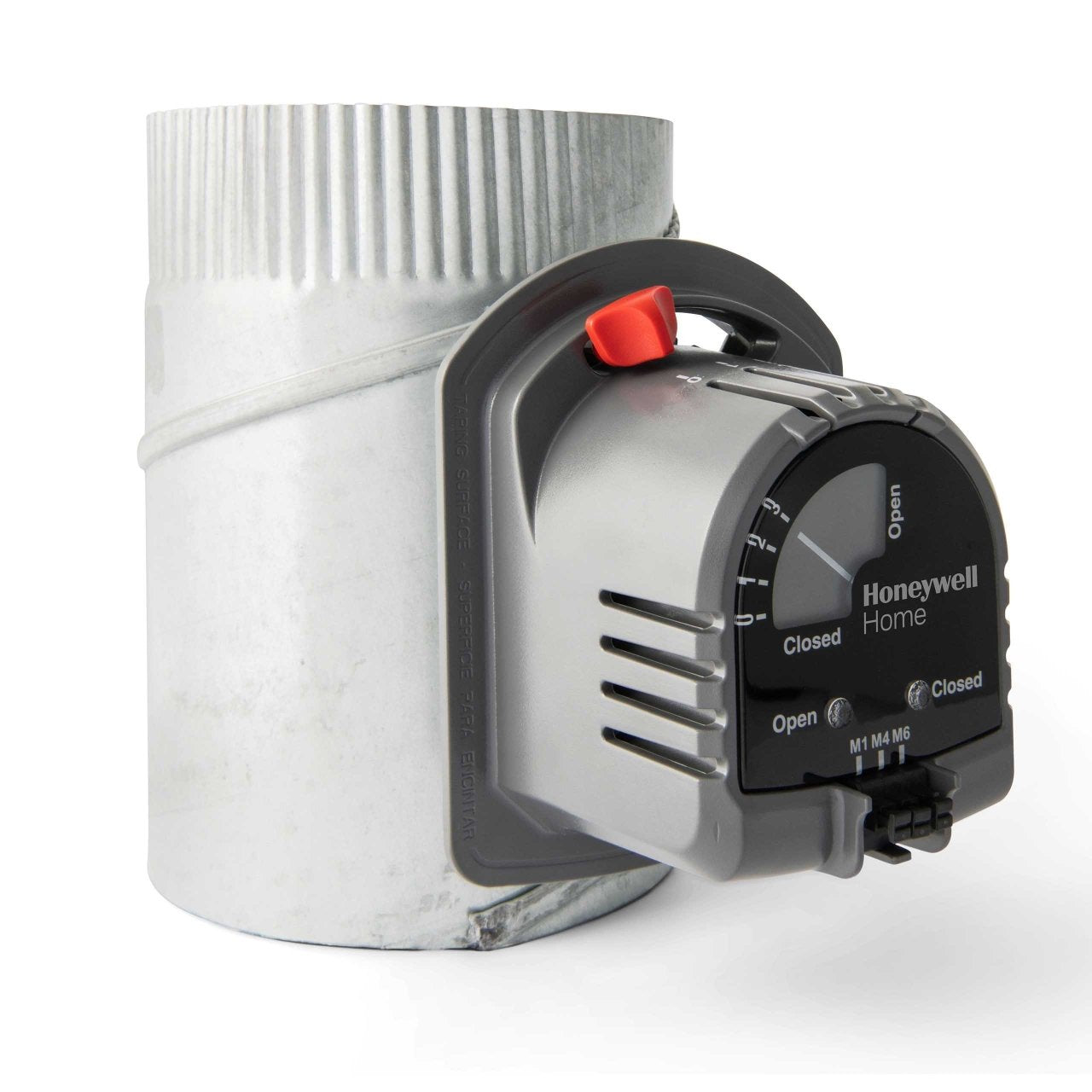

The Resideo ARD16TZ/U is a 16-inch automatic round HVAC damper made from galvanized steel. This product features a power-close, spring-open design that helps to minimize air leakage while effectively managing airflow in zoned heating, cooling, and ventilation systems. It operates with a 24V spring-return damper actuator.

• Single-blade damper ensures tight closure against its gasket for minimal leakage.
• Designed for easy two-wire installation.
• Equipped with adjustable range stops for simplified usage.

Product Highlights

This damper is ideal for HVAC professionals needing effective airflow control in zoned systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: ARD16TZ/U

Technical Specifications

• Damper Duct Shape Type: Round
• Damper Type: Zone
• Application: Zone Damper
• Damper Material: Galvanized Steel
• Warranty: 1 Year
• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Blade Material: Galvanized Steel
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
• Size: 16 inches
• Voltage: 24V
• Package Qty: 1
