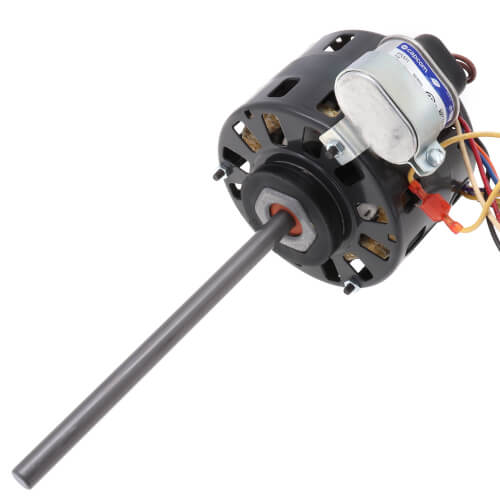

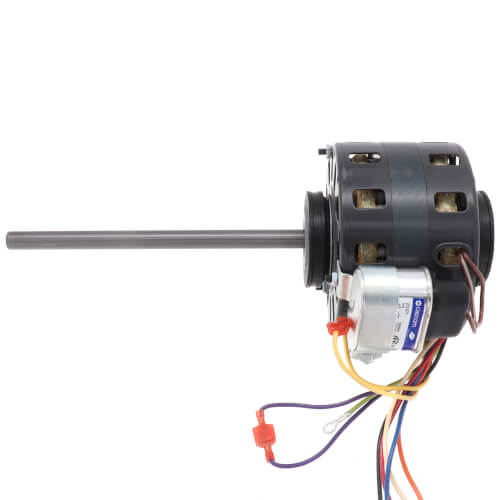

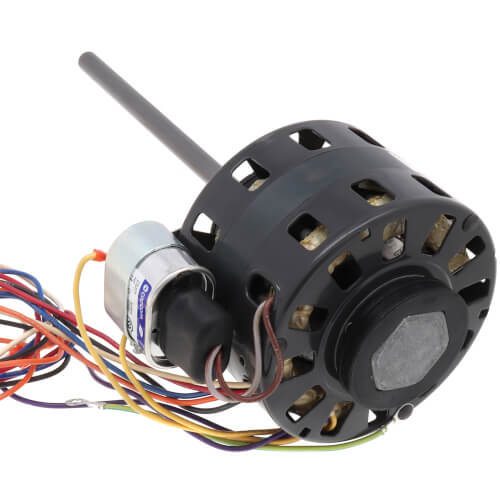

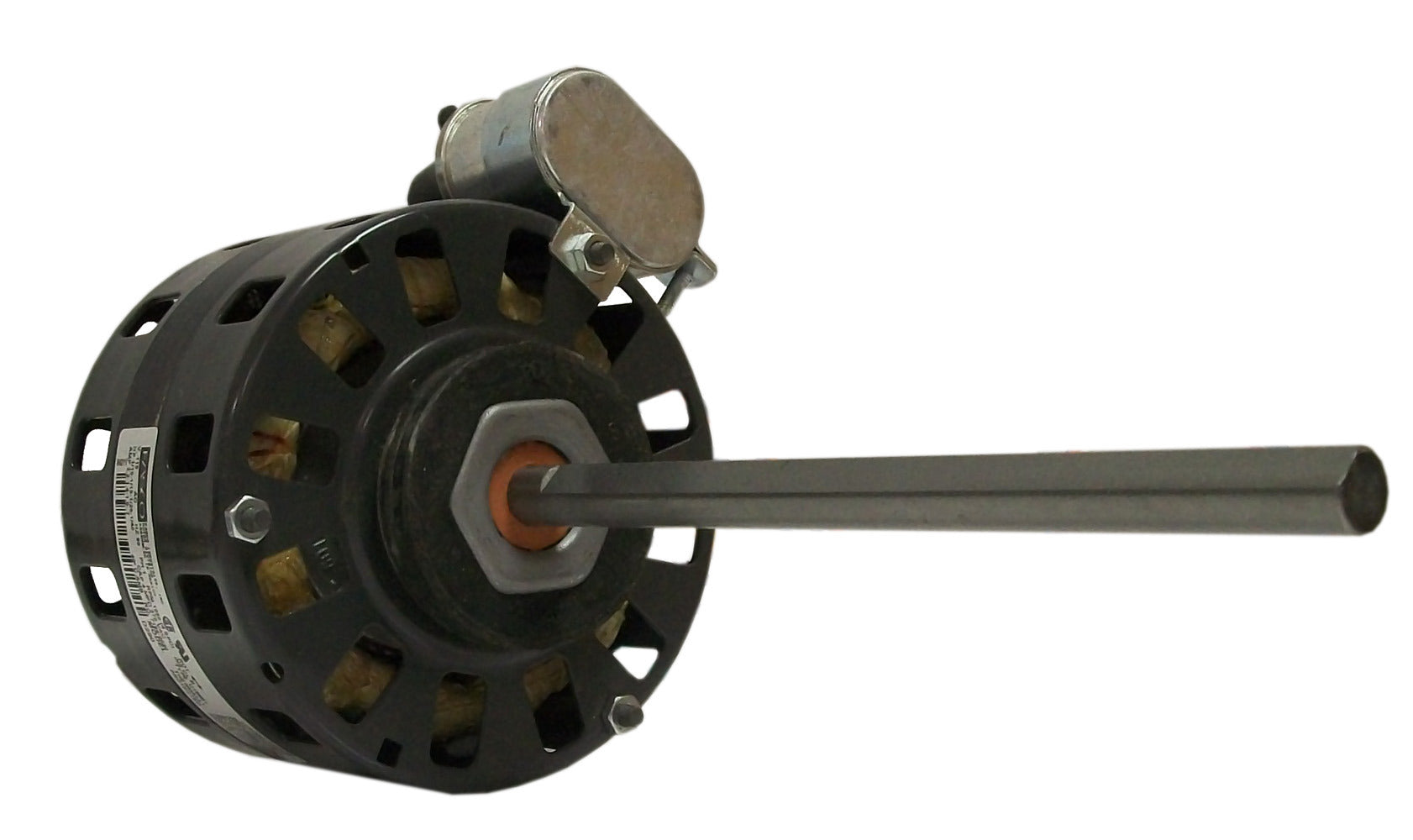

Fasco D290 Motor Fan Coil/Room Air Conditioner 1/10 Horsepower 1050 Revolutions per Minute 115 Volt 5 Inch Permanent Split Capacitor Reversible

Product Description

The Fasco D290 is a fan coil motor designed for room air conditioning applications. It operates at one-tenth horsepower and reaches speeds of one thousand fifty revolutions per minute. The motor is built for continuous duty and features a permanent split capacitor for efficient operation. It is reversible and designed to fit 5-inch diameter applications.

• Power: 1/10 HP
• Voltage: 115 V
• Speed: 1050 RPM

Product Highlights

This motor is suitable for HVAC systems and has a robust design for reliable performance.

Product Information

Standard Information

• Brand: Fasco
• MPN: D290

Technical Specifications

• Horsepower: 1/10 HP
• Speed: 1050 RPM
• Voltage: 115 V
• Electrical Type: Permanent Split Capacitor
• Rotation: Reversible
• Bearing Type: Sleeve
• Enclosure: Open Air Over
• Amperage: 2.2/1.4/1.0/0.7 AMP
• Phase: 1
• Number of Poles: 6
• Number of Speeds: 4
• Frame Type: 42
• Insulation Class: B
• Frequency: 60 Hz
• Duty: Continuous
• Shaft Type: Flat
• Diameter: 5 IN
• Shipping Weight: 9.000 LBS
