Robertshaw A30-182 Temperature Control 20 Amps 42 Inch Capillary

Product Description

The Robertshaw A30-182 is a temperature control device designed to regulate the temperature in commercial refrigeration systems. It includes features such as an SPST switch, off position, and a differential of 17 degrees Fahrenheit. The control comes with a 42-inch capillary, making it adaptable to many commercial refrigerators and freezers.

• Brand: Robertshaw
• MPN: A30-182
• 42-inch capillary

Product Highlights

This temperature control unit is suitable for commercial refrigeration applications. It offers high-amperage contacts, laser-welded stainless steel bellows, and pneumatic action provided by the capillary with a bulb sensing element.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: A30-182

Technical Specifications

• Item Number: A30-182
• Series: A30
• Switch Type: SPST
• Differential: 17 degrees Fahrenheit
• Capillary Length: 42 inches
• Voltage: 24/120/240/277 V
• Full Load Current: 20/16 A
• Pilot Duty Rating: 240 VA
• Electrical Connection: 1/4 inch Quick Connect
• Control Range: 20 - 3 degrees Fahrenheit
• Normal On: 20 degrees Fahrenheit
• Normal Off: 3 degrees Fahrenheit
• Cold Off: -6 degrees Fahrenheit
• Warm On: 44 degrees Fahrenheit

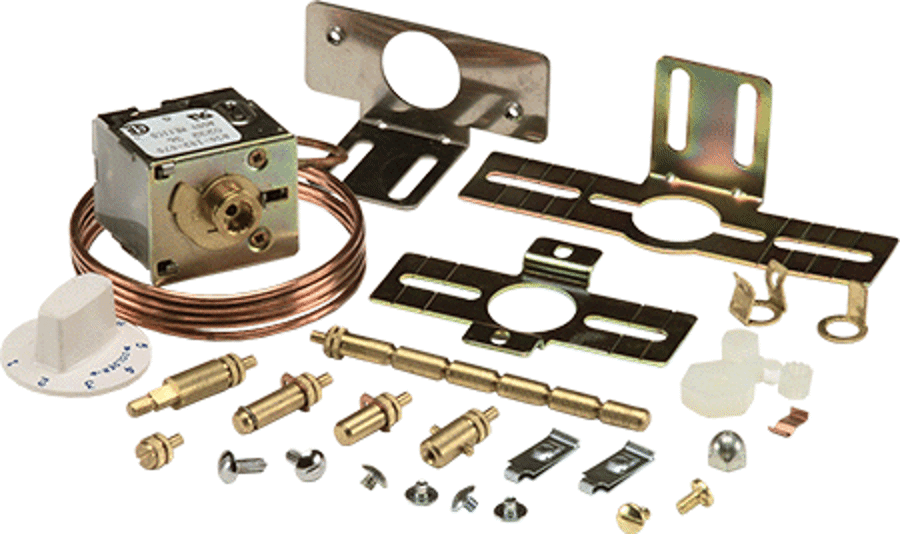

• Includes: Knob, Mounting Hardware, and Brackets
• Applications: Commercial Refrigerators and Freezers
• Certifications: CuS Certified
