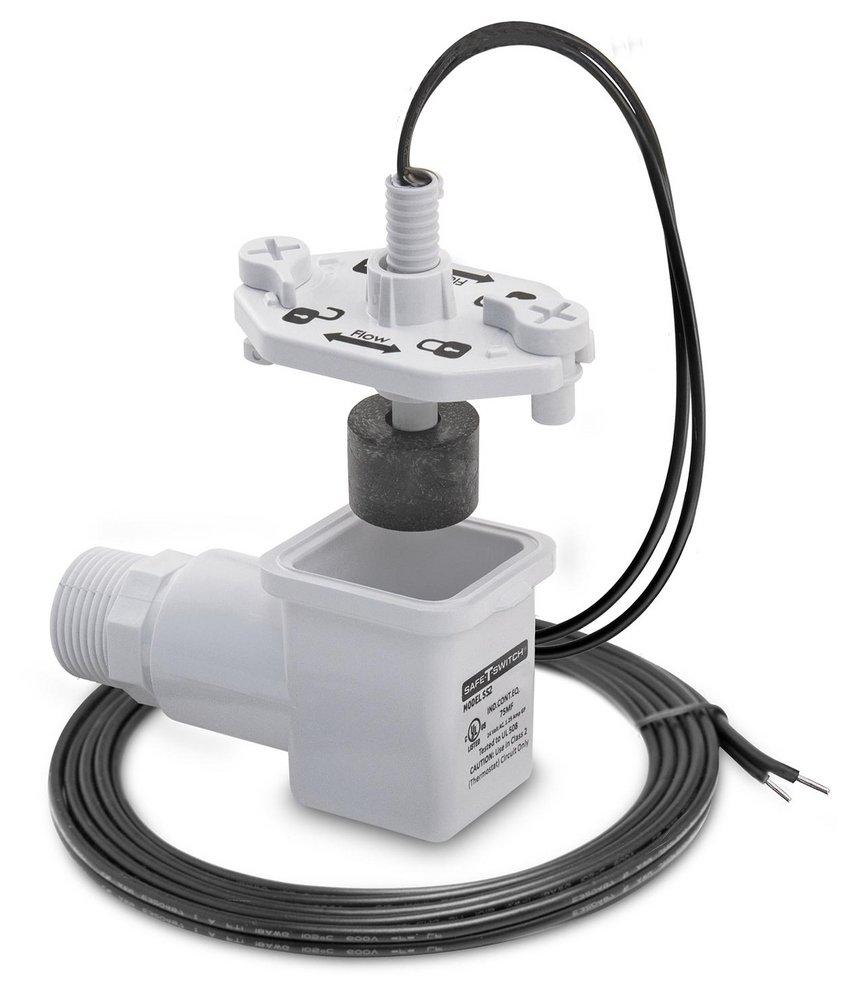

Rectorseal 97087 Safe-T-Switch SS2 Condensate Overflow Switch

Product Description

The Rectorseal Safe-T-Switch Model 97087 is designed to monitor the primary drain pan and prevent water damage. It detects blockages in the A/C condensate drain and safely shuts off the system when necessary. This switch mounts directly on the auxiliary outlet, utilizing the supplied three-quarters inch adapter. The float settings can be adjusted without needing to remove the cap, ensuring convenience for maintenance. The switch includes a reliable magnetic reed switch and is packaged for easy display.

• Condensate overflow detection
• Adjustable float sensitivity
• Simple installation with included adapter

Product Highlights

This product is essential for HVAC professionals managing air conditioning systems, ensuring protection against overflow and related water issues.

Product Information

Standard Information

• Brand: Rectorseal
• MPN: 97087

Technical Specifications

• Voltage Rating: 24 VAC
• Ampere Rating: 1.25 A
• Material: Plastic
• Cable Length: 6 ft
• Size: Length 5.5 inches, Width 2 inches, Height 2.5 inches
• Wire Size: 18 AWG
• Applications: For primary drain pan auxiliary outlet
• Standards: cULus Listed, UL Listed
