Honeywell Q7002C1007 Interface Module PWM Analog Control

Product Description

The Honeywell Q7002C1007 Interface Module expertly converts PWM signals into analog outputs, facilitating the use of controllers with Direct-Coupled Proportional Actuators and Modutrol Motors. This versatile device is essential in settings that require precise control over building automation systems.

• Enables PWM to analog conversion for enhanced equipment compatibility.
• Supports both 24 Vac and 24 Vdc input power.

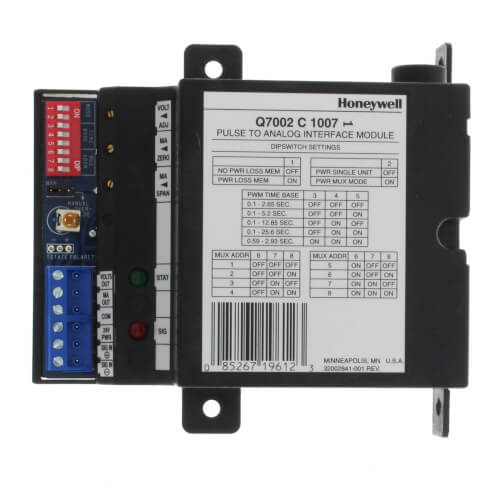

• Features user-selectable PWM time base and multiplex mode for extensive application scope.

Product Highlights

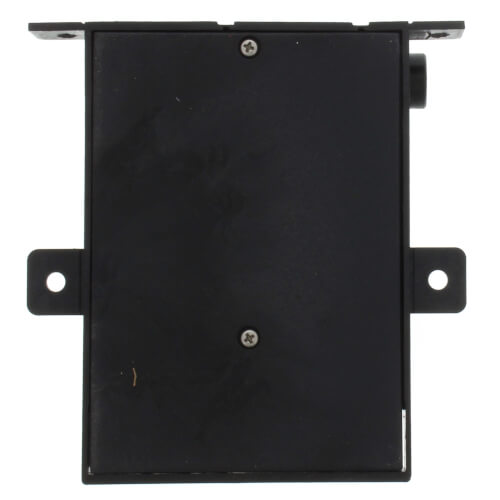

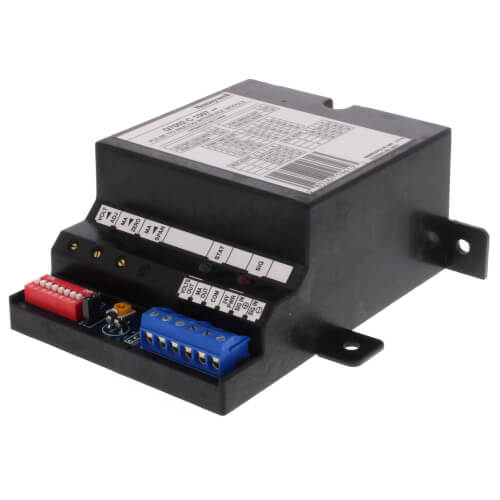

This module is housed in a robust NEMA 1 enclosure, ensuring reliable performance in industrial environments. It comes with mounting tabs for easy installation. The unit is designed with jumper-selectable inputs and outputs, which include adjustable zero and span, allowing detailed customization based on specific system requirements.

Product Information

Standard Information

• Category: HVAC Supplies
• Use With: Economizer Logic Modules, Direct-Coupled Proportional Actuators, Modutrol Motors

Technical Specifications

• Power Requirement: 24 Vac ±20%, 24 Vdc
• Frequency: 60 Hz
• Output Burden: 0 to 20 mA < 500 ohm; 0 to 10 Vdc > 500 ohm
• Mounting: Enclosure with mounting tabs
• Control Signal: PWM, adjustable outputs
