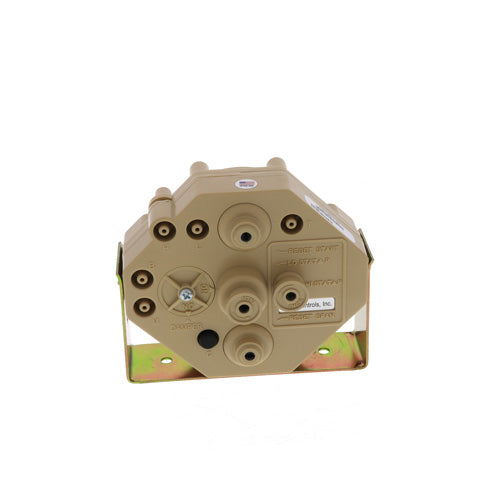

KMC Controls CSC-3011-10 Reset Volume Controllers for VAV

Product Description

The KMC Controls CSC-3011-10 Reset Volume Controller is a versatile component designed for VAV systems. It is ideal for both normally open and normally closed VAV terminal units and can work with both direct or reverse acting thermostats.

• For heating and cooling systems
• Sub-master air velocity controller
• Includes mounting bracket

Product Highlights

The CSC-3011-10 provides separate adjustment knobs for minimum and maximum airflow setpoints. It also offers various reset start points. A master controller, such as a room thermostat, adjusts the CSC-3011-10 between the minimum and maximum airflow setpoints.

Product Information

Standard Information

• Manufacturer: KMC Controls
• Brand: KMC Controls
• Part Number: CSC-3011-10
• Category: Pneumatic Controls

Technical Specifications

• Product Type: Multi-Function Pneumatic VAV Reset Volume Controller
• Air Consumption: 28.8 SCIM at 20 PSIG
• Main Air Pressure: 15 to 30 PSIG
• Operating Temperature: 40 to 120 Degrees Fahrenheit
• Max Signal Pressure: 6 inches WC
• Connection Ports: Push On Fittings For 1/4 inch OD Tubing
• Material: ABS
• Output Capability: 0 to Supply Pressure
• Control Type: DA/RA
