PLUMBING 26610 Plumbing Viega Megapress Xl Tee 4 x 4 x 2

Product Description

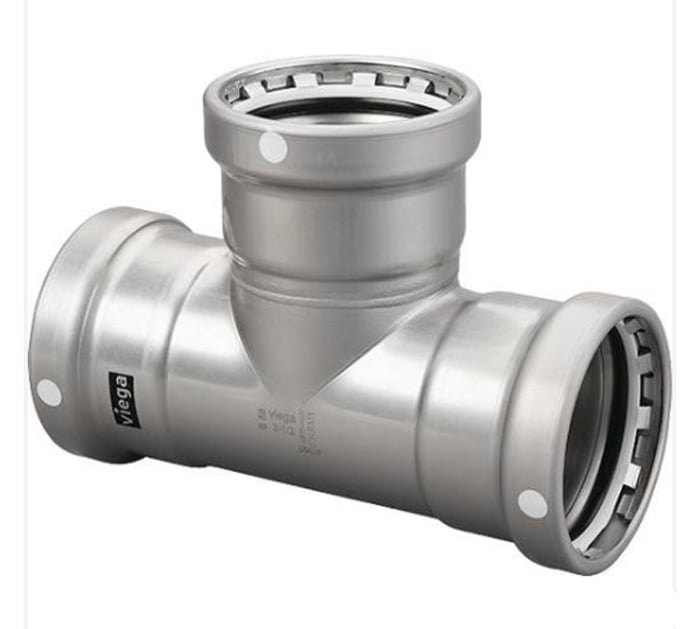

The Plumbing Viega MegaPress XL 26610 is a tee fitting made from carbon steel. It has press end connections and is designed for use with several types of carbon steel pipes.

• Constructed from durable carbon steel material.
• Features press end connections for easy installation.
• Suitable for various applications including fire sprinkler and compressed air systems.

Product Highlights

This fitting is suited for use in environments ranging from fourteen to two hundred eighty-four degrees Fahrenheit.

Product Information

Standard Information

• Brand: MegaPress XL
• Manufacturer: Viega

Technical Specifications

• MPN: 26610
• Type: Tee
• Material: Carbon Steel
• Nominal Size: 4 Inch x 4 Inch x 2 Inch
• End Connection: MegaPress XL x MegaPress XL x MegaPress XL
• Connection Type: Press
• Pressure Rating: 200 PSI
• Temperature Rating: 14 to 284 Deg F
• Seal Material: FKM
• Finish: Zinc Nickel Coated
• Application: Chilled Water, Hydronic Heating, Fire Protection, Low Pressure Steam, Compressed Air, Industrial Gas, Vacuum
• Applicable Standard: ABS, CRN 0A14541.5 A/B/C, FM, IAPMO PS117, ICC-ES LC1002, NFPA 13/13D/13R/31/54/58, ASME B31.1/B31.3/B31.9, LR, DNV, GL, UL/ANSI 213
• Dimensions: 5.35 in L
• Weight: 6 lbs
