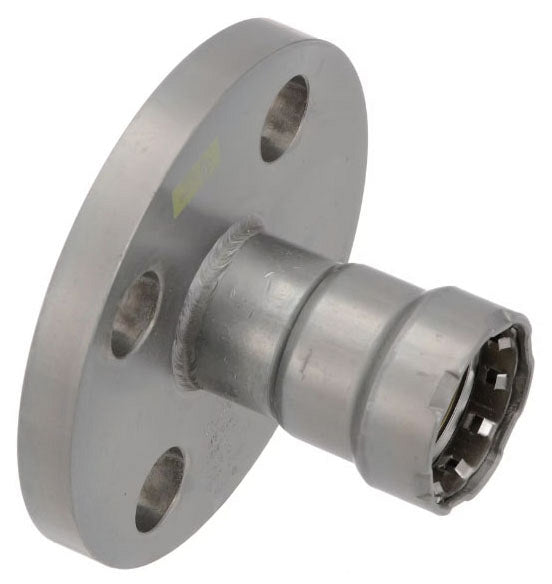

PLUMBING 25771 Viega MegaPressG 1-Inch Gas Flange

Product Description

The PLUMBING Viega 25771 MegaPressG is a one inch gas flange made for Schedule 5 to Schedule 40 carbon steel pipe. This product uses advanced press connection technology, which removes the need for threading or welding. It is built from carbon steel and has a zinc-nickel coating for added durability. The Smart Connect technology helps in detecting unpressed connections. This flange is ideal for gas and fuel oil applications.

• Smart Connect technology for unpressed connection detection
• Compatible with Schedule 5 to Schedule 40 carbon steel pipe
• Made from durable carbon steel with zinc-nickel coating

Product Highlights

This flange is designed for reliable use and efficiency in gas and fuel oil applications.

Product Information

Standard Information

• Brand: Viega
• Manufacturer: Viega

Technical Specifications

• Material: Carbon Steel
• Connection Type: Press x FNPT
• Nominal Pipe Size: 1 Inch
• Maximum Temperature: 180 Deg F
• Maximum Pressure: 125 PSI
• Application: Natural Gas, Lubricant/Oil, Fuel Oil, Heating Oil, Compressed Air, Industrial Gas, Vacuum, Commercial, Residential
• End Connection: MegaPressG
• Finish: Zinc Nickel Coated
• Flange Outside Diameter: 4.33 Inch
• Material Specification: ASTM A53/A106/A135/A795
• Pressure Rating: 200 PSI
• Temperature Rating: -40 to 180 Deg F
• Type: Straight
• Applicable Standard: CAN/CSA-B149-1, ABS, ASME B31.1/B31.3/B31.9, BV, NSPC, UMC, UPC, FGC, IMC, IRC, NBCC, NPCC, ICC, DNV GL, CSA/IAPMO/ICC-ES ANSI LC 4A/CSA 6.32A, LR, CRN 0A14541.5 A/B/C, NFPA 54/Z223/58, NKK
• Thickness: 0.58 Inch
