PLUMBING 25761 MegaPress Gas 1/2 Flange

Product Description

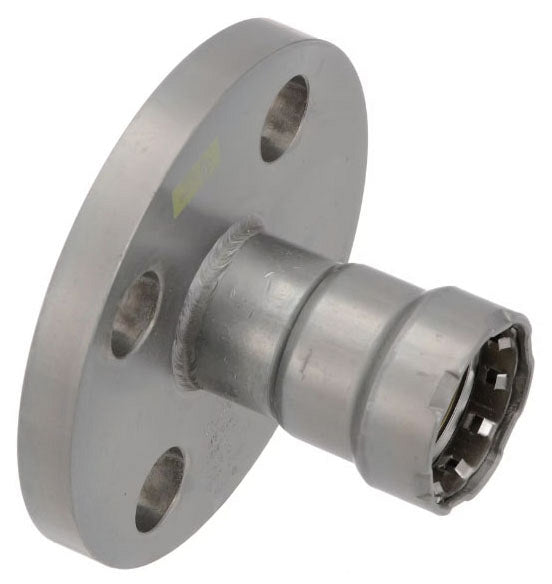

The Plumbing 25761 MegaPress Gas flange is made from carbon steel and has a zinc nickel coating. It is ideal for use with ASTM Schedule 5 to Schedule 40 black iron pipe. This flange has a press end connection and is suitable for natural gas, propane gas, lubricant or oil, compressed air, industrial gas, and vacuum systems. It includes an HNBR sealing element and works with Viega ProPress press tools.

• Constructed from carbon steel
• Zinc nickel coating for enhanced durability
• Compatible with various gas applications

Product Highlights

This flange provides secure connections and is designed for various industrial and residential applications.

Product Information

Standard Information

• Brand: Plumbing
• MPN: 25761

Technical Specifications

• Material: Carbon Steel
• Finish: Zinc Nickel Coated
• Nominal Pipe Size: 1/2 Inch
• End Connection: MegaPress
• Temperature Rating: -40 to 180 Degrees F
• Pressure Rating: 200 PSI
• Applications: Natural Gas, Lubricant/Oil, Fuel Oil, Heating Oil, Compressed Air, Industrial Gas, Vacuum, Commercial, Residential
• Applicable Standards: CAN/CSA-B149-1, ABS, ASME B31.1/B31.3/B31.9, BV, NSPC, UMC, UPC, FGC, IMC, IRC, NBCC, NPCC, ICC, DNV GL, CSA/IAPMO/ICC-ES ANSI LC 4A/CSA 6.32A, LR, CRN 0A14541.5 A/B/C, NFPA 54/Z223/58, NKK
• Material Specification: ASTM A53/A106/A135/A795
• Flange Outside Diameter: 3.54 Inch
• Fitting Size: 1/2
• Fitting Type: Flange
• Product Length: 3.563 Inches
• Product Width: 2.438 Inches
• Product Height: 2.539 Inches
• Product Weight: 1.393 Pounds
• Connection Type: Press x FNPT
• Max Temperature: 180°F
• Max Pressure: 125 PSI
• Face Size: 4
• Inlet Diameter: 1/2 Inch
