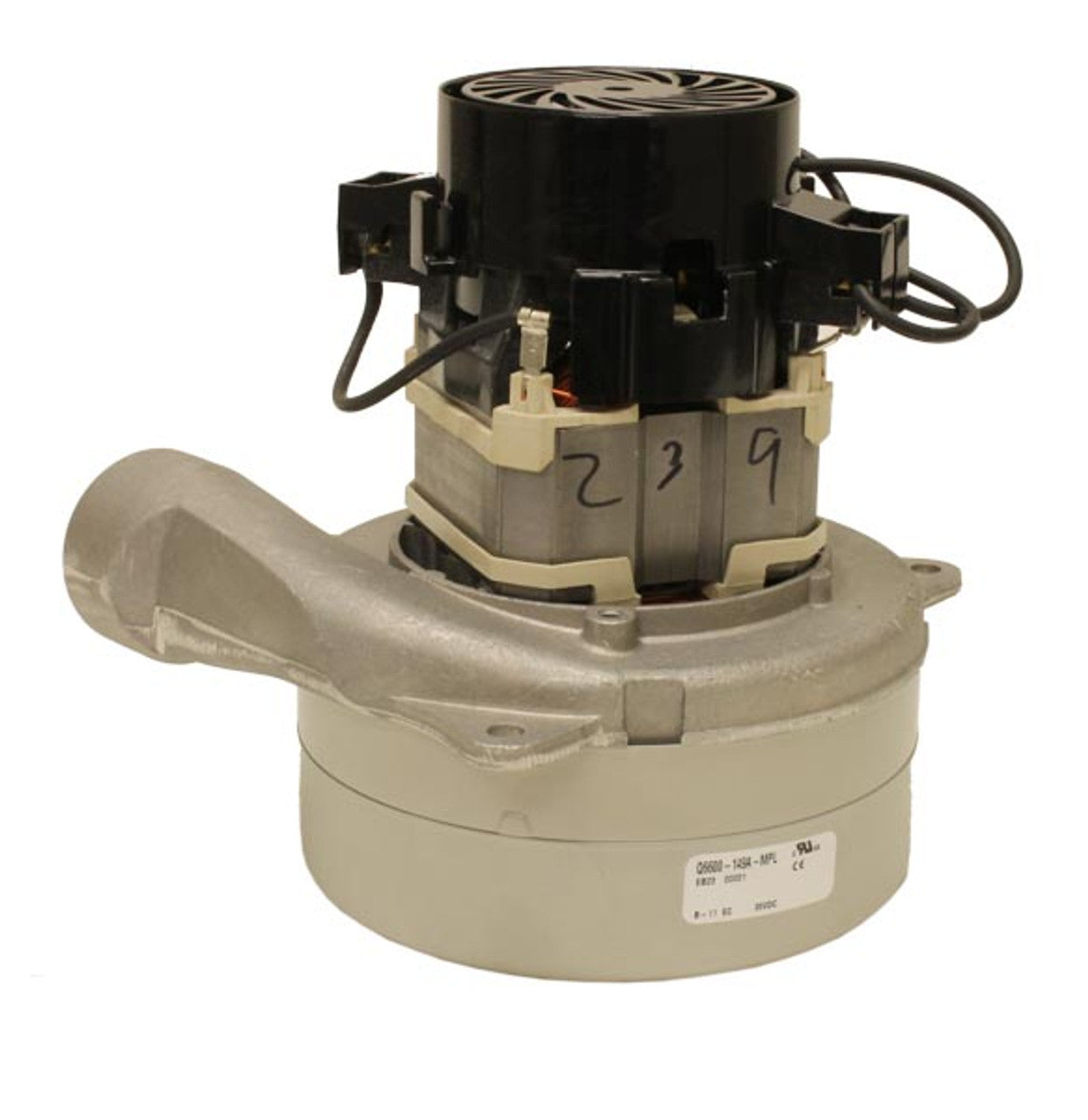

PEMS Q6600149AMPL1.8 Q6600-149A-MPL-1.8 Vacuum Motor 36V

Description:
36 Volt
2 Stage
71 CFM @ 2 Orfice
51 Sealed H20 Vacuum
118 Max Air Watts
10.9 Max Amps
8.16 Overall Height
BPT Type (Bypass Tangential)
SKU:Q6600-149A-MPL-1.8
Weight:5.00 LBS
Shipping:Calculated at Checkout

NOTE: Bypass Tangential (BPT). Same as Peripheral bypass with two airflow systems except the working filtered air exhaust exits through the tangential horn integral to the 3 lugged motor mounting bracket.

NOTE: Same part number Q6600-149A-MP with the addition of kit 0103-001 inlet tube adapter for 1.5 and 1.88
