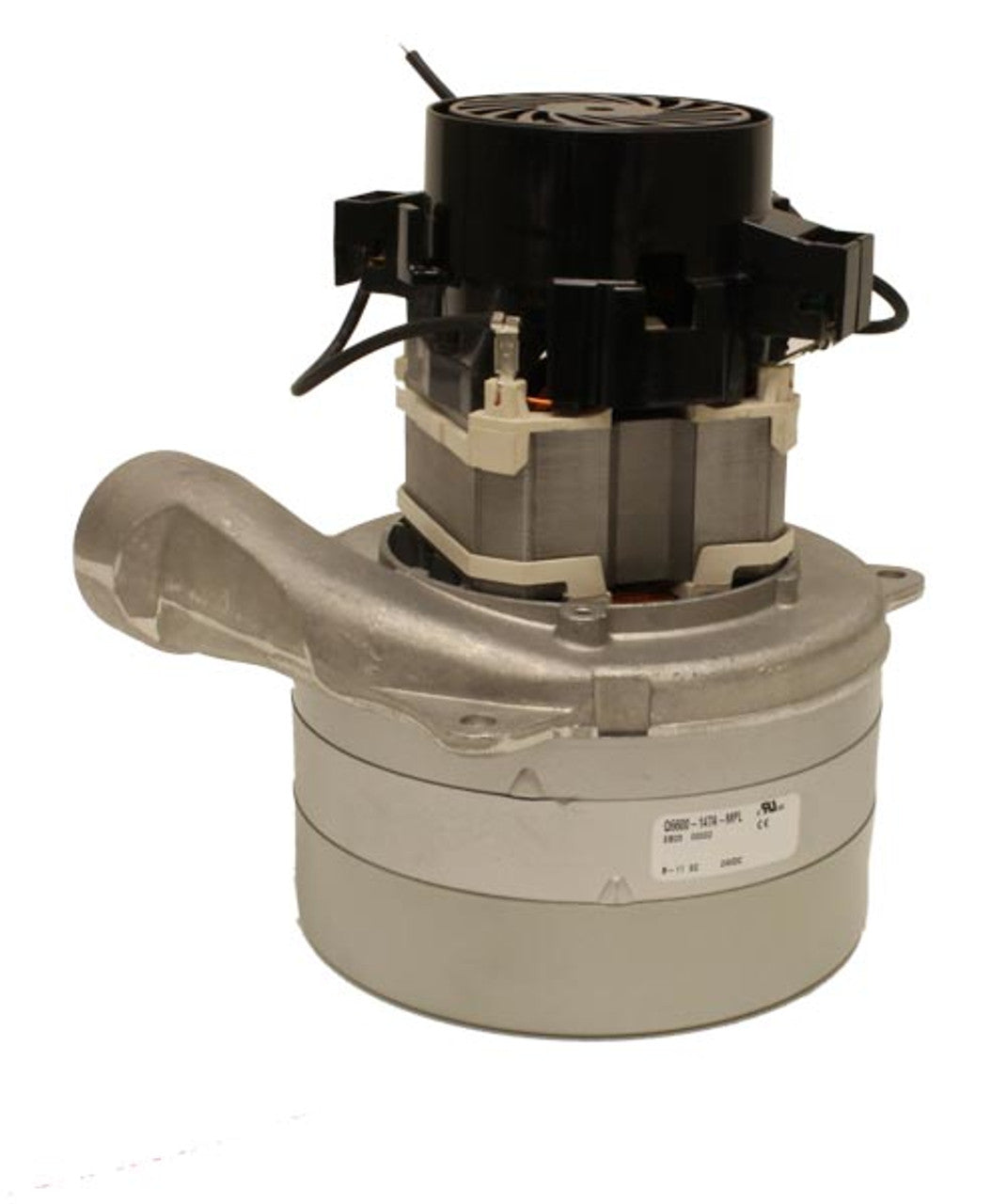

PEMS Q6600147AMPL Q6600-147A-MPL Vacuum Motor 24V

Specifications:
24 Volt
3 Stage
71 CFM @ 2 Orfice
71 Sealed H20 Vacuum
156 Max Air Watts
21.5 Max Amps
7.88 Overall Height
BPT Type (Bypass Tangential)

NOTE: Bypass Tangential (BPT). Same as Peripheral bypass with two airflow systems except the working filtered air exhaust exits through the tangential horn integral to the 3 lugged motor mounting bracket.

CROSS REFERENCES: Ametek, 116515-13, 119433-13, Dayton, 4M919, 3GXF3
