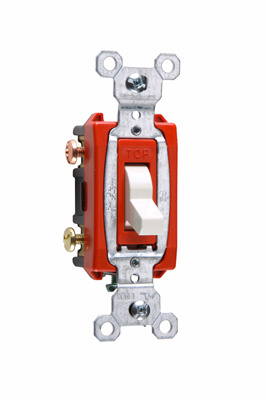

Pass & Seymour CS20AC3LA Commercial 3Way Switch, 20Amp 120/277Volt

Product Description

The Pass & Seymour CS20AC3LA is a commercial-grade 3-way toggle switch designed for side wiring. Rated for 20 amps and operating at 120 or 277 volts, this light almond switch is suitable for various electrical applications.

• Commercial-grade 3-way toggle switch.
• Accepts #14 - #10 AWG copper or copper-clad wire.
• Durable construction for long-lasting performance.

Product Highlights

This switch features oversized silver alloy contacts, a cam design for fast action, and a robust nylon material to ensure reliability in commercial applications.

Product Information

Standard Information

• Brand: Pass & Seymour
• Model Number: CS20AC3LA

Technical Specifications

• Voltage: 120/277 Volt
• Amperage: 20 Amp
• Type: Switch
• Connection Type: Side wire or external screw-pressure plate
• Number of Poles: 3 Pole
• Dimensions: 3.281 inches (height) x 1.320 inches (width) x 1.073 inches (depth)
• Country of Origin: Mexico
• Operating Temperature: 40 degrees F
