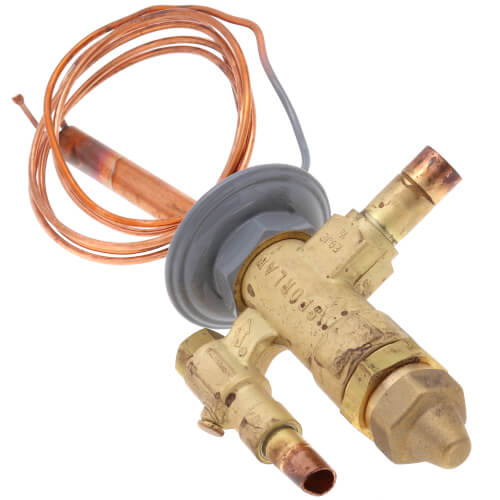

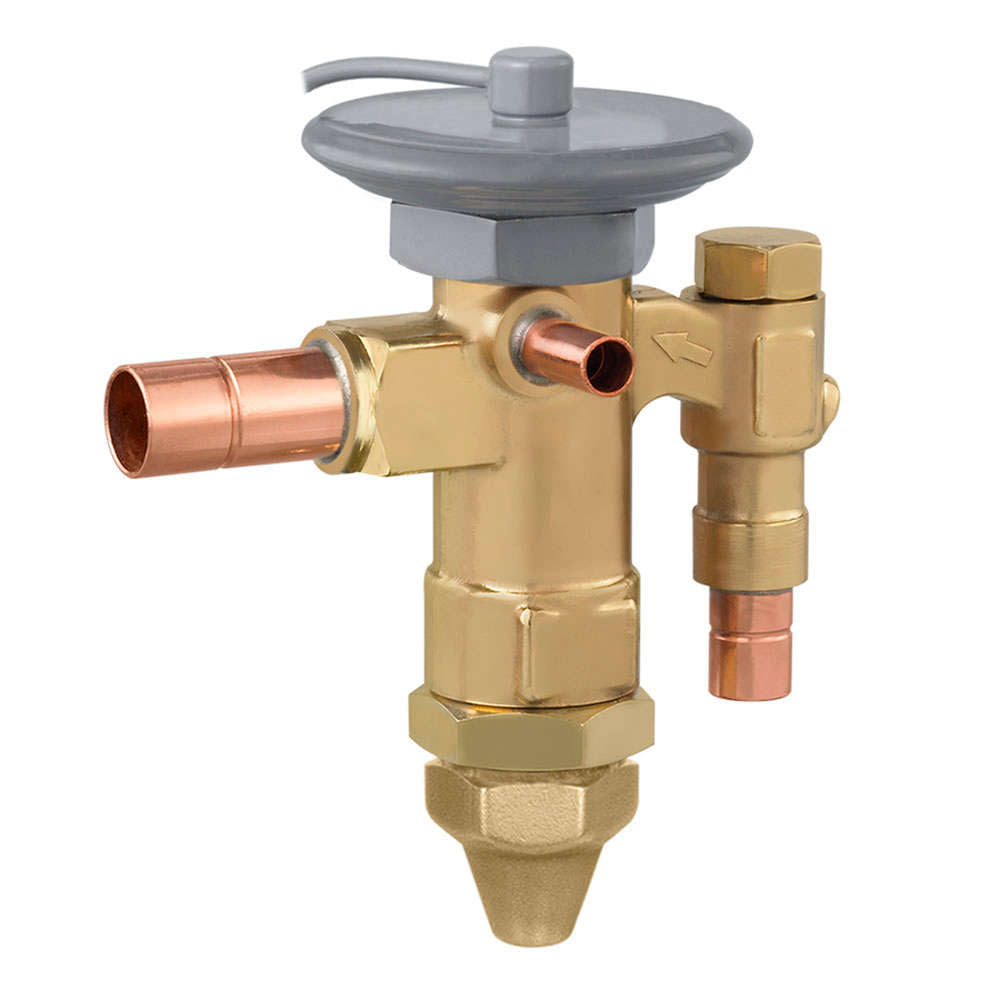

Sporlan 164554 Thermal Expansion Valve R-22 3/4 Ton

Product Description

Sporlan presents the 164554 Thermal Expansion Valve, a critical component for commercial refrigeration systems. This valve is specifically designed to enhance system performance by regulating the flow of refrigerant R-22, suitable for a 3/4 ton capacity.

• Equipped with 3/8 inch ODF inlet and 1/2 inch ODF outlet connections.
• Features an externally equalized design for precise operation.
• Includes a 60 inch capillary length for flexible installation.

Product Highlights

The valve's body is crafted from durable forged brass, ensuring prolonged service life and reliability.

Product Information

Standard Information

• Refrigerant Type: R-22, adaptable for R-407A, R-407C, R-422D
• Nominal Capacity: 3/4 Ton

Technical Specifications

• Thermostatic Charge: Type C Charge for lower temperature applications.
• Equalization Method: Externally equalized to accommodate varying loads.
• Capillary Length: 60 inches.
• Connection Type: ODF solder connections for secure sealing.
