Product Description

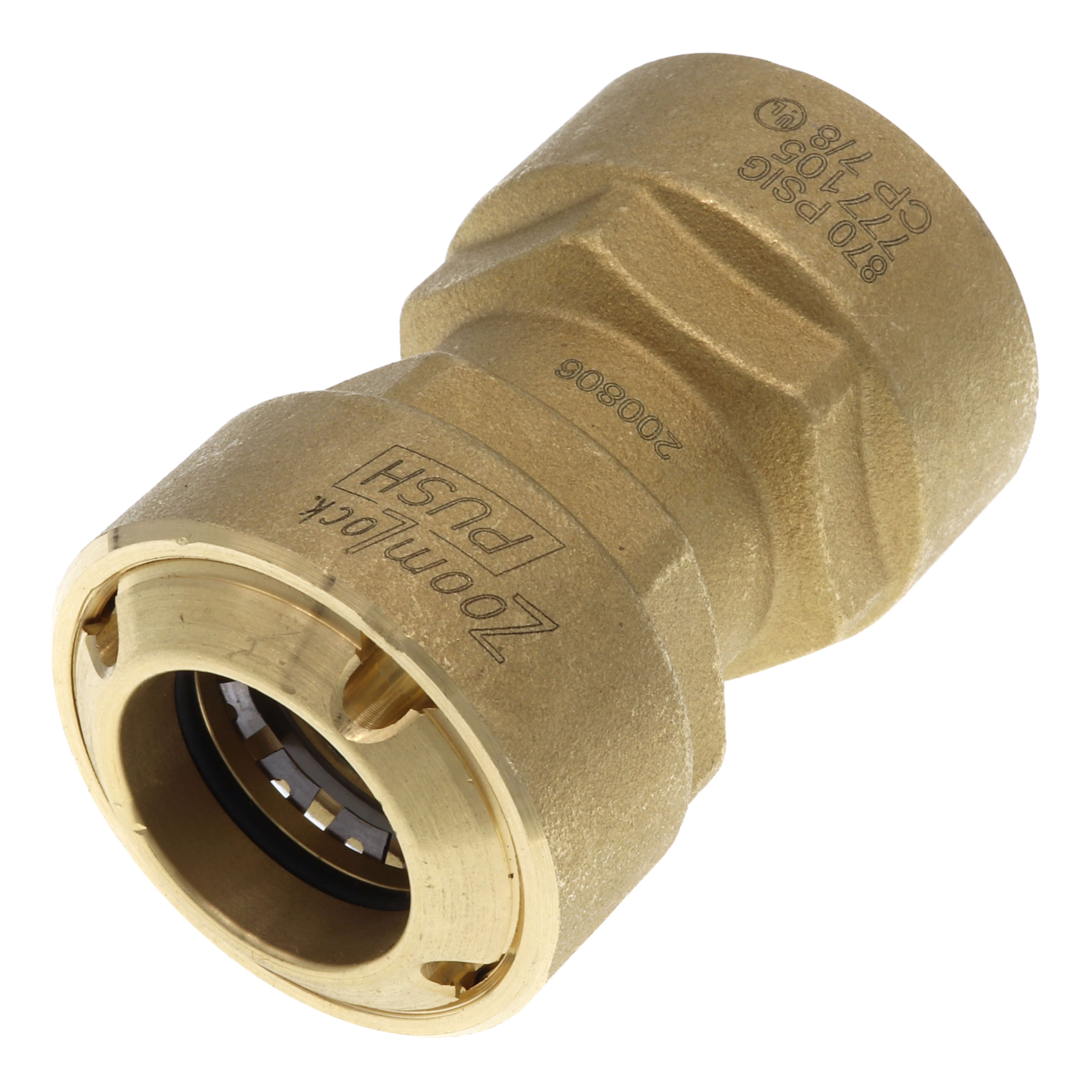

Parker Hannifin 777105 is a 7/8 ZoomLock PUSH R410A Optimized Coupling designed for quick and reliable refrigerant connection. It eliminates the need for traditional brazing methods often used in HVACR installation. With ZoomLock PUSH, professionals can connect refrigerant lines in seconds, enhancing job efficiency. This coupling is suitable for residential AC, heat pumps, mini-splits, and refrigeration installations.
- No press tool or jaws needed
- Fast and easy installation
- Safer conditions with no fire hazards
Product Highlights
Ideal for contractors seeking a safe and efficient solution for refrigerant connections.
Product Information
Standard Information
-
Connection Size: 7/8 inches
-
Applications: High Pressure HVAC/R
Technical Specifications
-
Continuous Operating Temperature: 250°F / 121°C
-
O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
-
Maximum Rated Pressure (MRP): 700 psi / 48 bar
-
Minimum Burst Pressure: 2,100 psi / 145 bar
-
Vacuum Pressure Capability: 500 Microns
-
External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
-
Vibration Resistance: Conforms to UL109
-
Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
-
O-Ring Material: HNBR
-
UL Listed: SA7511 Approved for field and factory installations
