panasonic PC-RD05C5 radiation damper all-in-one flexible

Product Description

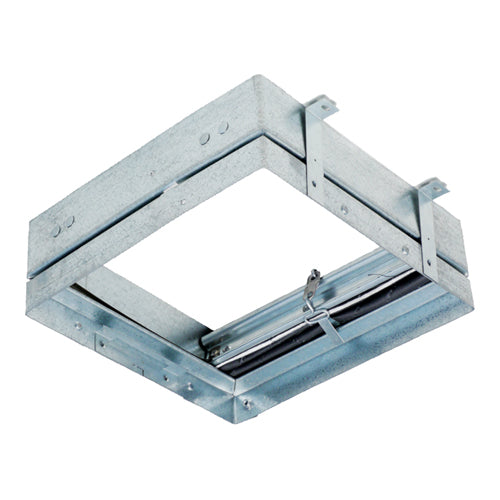

The Panasonic PC-RD05C5 is a flexible radiation damper designed for ceiling installation. This damper meets both combustible and non-combustible UL assembly standards. It supports two-stage construction, allowing fan housing and damper sleeve installation during framing and fan/motor/damper installation after finishes.

• Compatible with Panasonic 10-1/4 inch fans ranging from 50 to 150 CFM
• Constructed from galvanized steel for durability
• Features a 165-degree Fahrenheit fusible link for safety

Product Highlights

The PC-RD05C5 provides easy access for maintenance and features high-temperature, non-asbestos, reinforced fiber thermal fabric. The damper dimensions are eleven and seven-eighths inches in width, depth, and three and one-fourth inches in height.

Product Information

Standard Information

• Brand: Panasonic
• Manufacturer Part Number: PC-RD05C5

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Mounting Type: Ceiling
• Dimensions: 11-7/8 inches W x 11-7/8 inches D x 3-1/4 inches H
• Type: All-In-One
• Standards/Approvals: UL 555C Listed, ENERGY STAR Certified
• Shape: Square
