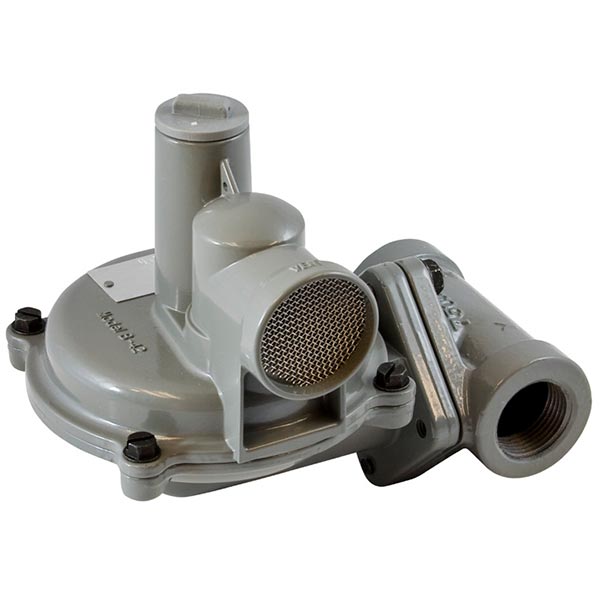

Oslin Nation B42R38DG14 Itron B42 Series 1-1/4-in Gas Internal Relief Pressure Regulator, 3/8 in Orifice

Product Description

The Oslin Nation B42R38DG14 is a gas internal relief pressure regulator designed for reliable performance. This spring-loaded regulator operates automatically and includes an internal relief option for enhanced safety. It is suitable for applications involving natural gas and liquid propane. With a one inch vent and a robust design, this regulator meets industry standards for pressure control.

• Spring-loaded self-operated design
• Internal relief option for added safety
• Suitable for natural gas and liquid propane applications

Product Highlights

The B42 features a molded diaphragm and a six to one lever ratio, making it effective for pressure regulation in various settings.

Product Information

Standard Information

• Brand: Oslin Nation Co
• Part Number: F1202

Technical Specifications

• Country of Origin: US
• Emergency Inlet Pressure: 75 psig
• Emergency Outlet Pressure (Containment): 30 psig
• Emergency Outlet Pressure (No Damage): 60 psig
• Gas Application: Natural Gas, Liquid Propane
• K-Factor: 290 K
• Lever Material: Zinc and Dichromate Plated Steel
• Lever Pin Material: #303 Stainless Steel
• MAOP: 20 psig
• Operating Temperature Range: -20 to 150 deg F
• Orifice Material: Aluminum
• Orifice Size: 3/8 in
• Outlet Size: 1 in
• Series: B42 R
• Valve Body Material: High tensile strength cast iron (ASTM A-126, Class A)
• Valve Body Size: 1-1/4 in
• Valve Seat Material: Buna-N
• Valve Stem Material: Die Cast Zinc
