Omega Flex FGP-RFG-500 AutoFlare CounterStrike 1/2 inch Flanged x MNPT

Product Description

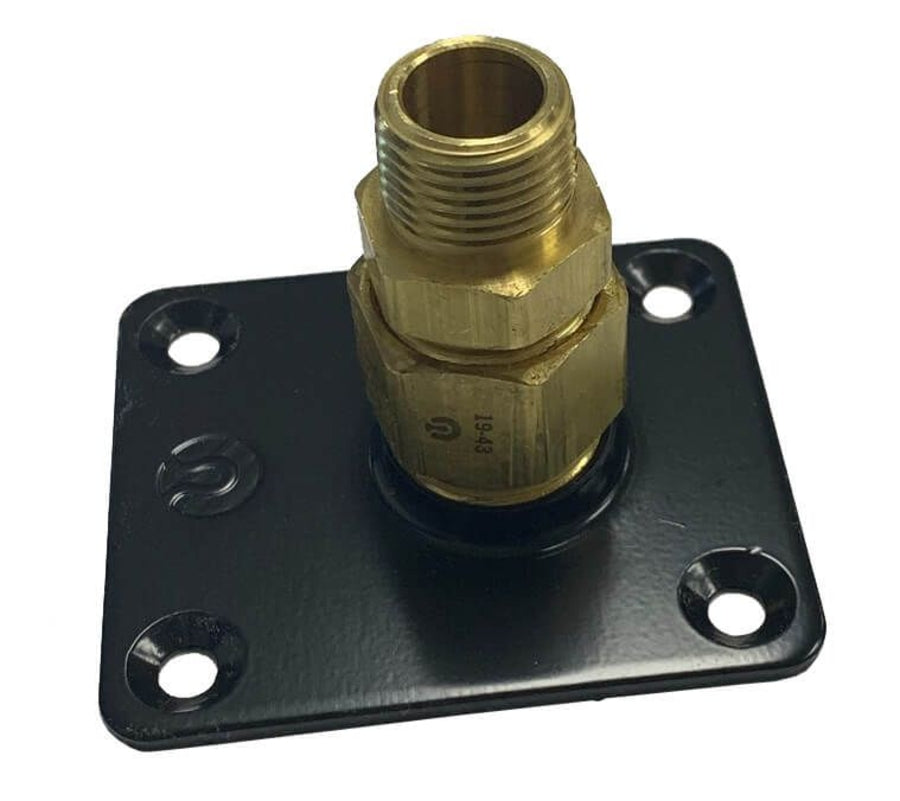

The Omega Flex FGP-RFG-500 is a flange fitting designed for connecting TracPipe or CounterStrike tubing to male NPT threads. This fitting is suitable for both indoor and outdoor applications. It features a self-piloting design which simplifies installation without the need for special tools.

• Easy connection to traditional gas fittings
• Compatible with TracPipe and CounterStrike systems
• Designed for use in concealed and exposed locations

Product Highlights

Utilize this fitting for secure connections in gas piping systems, ensuring adherence to local codes and safety standards.

Product Information

Standard Information

• Brand: Omega Flex
• MPN: FGP-RFG-500

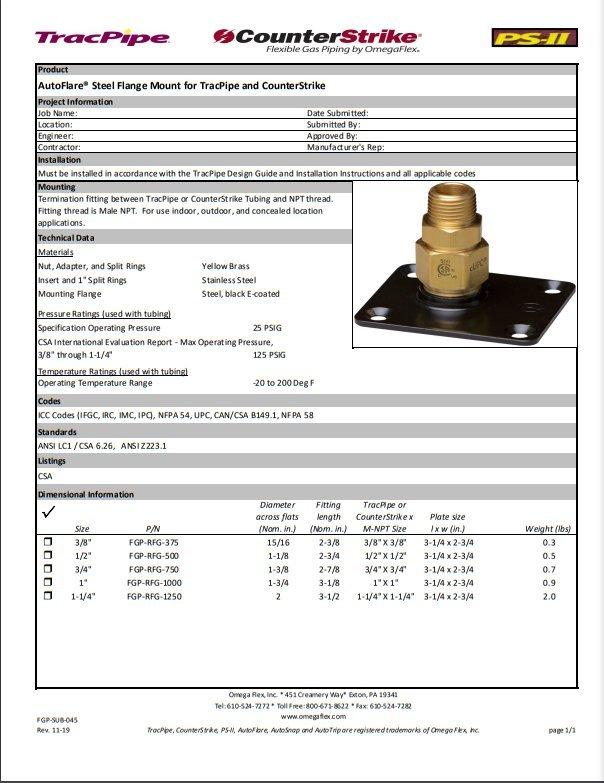

Technical Specifications

• Type: Flange Adapter
• Material: Carbon Steel
• Connection Type: MNPT
• Nominal Size: 1/2 inch
• Pressure Rating: 25 psig
• Temperature Rating: -20 to 200 degrees F
• Dimensions: 2.75 inches x 2.5 inches x 3.25 inches
• Weight: 0.60 lbs
