Product Description

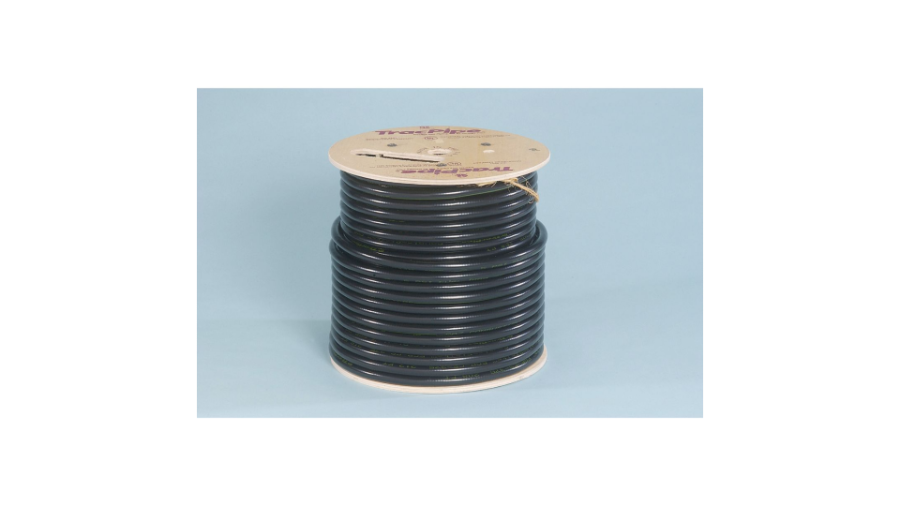

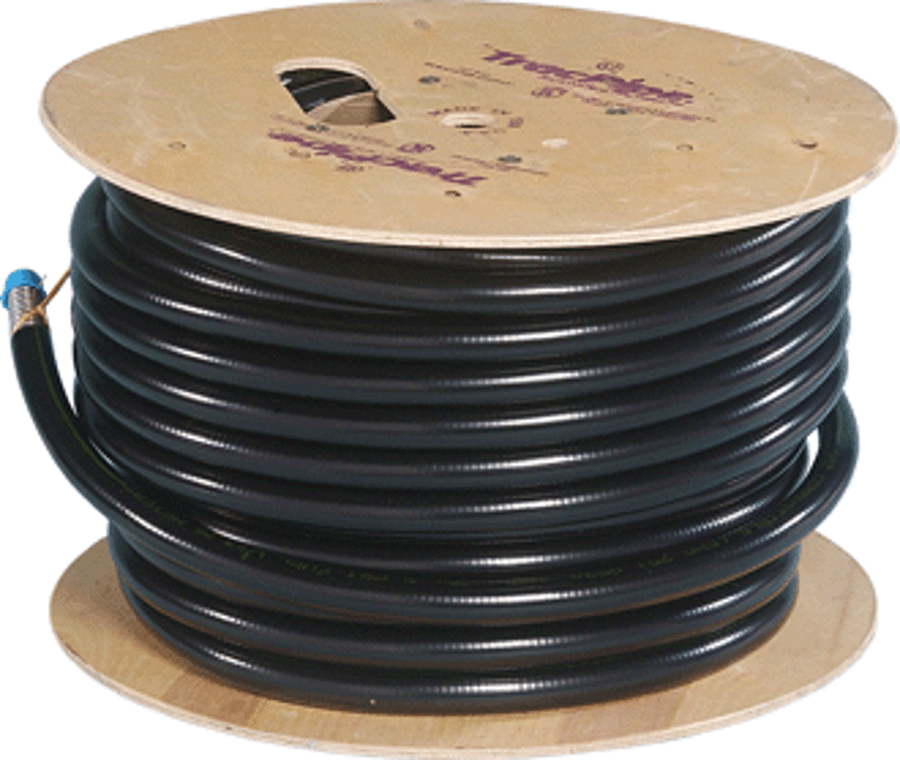

The Omega Flex FGP-CS-750-100 is a flexible gas pipe designed specifically for natural gas and propane applications. This tubing features a nominal size of three-quarters of an inch and comes in a length of one hundred feet. It consists of stainless steel with a polymer jacket that enhances its durability and flame resistance.
- Suitable for residential and commercial gas installations.
- High resistance to electrical arcing ensures safety and reliability.
- Easy installation with AutoSnap fittings requiring no disassembly.
Product Highlights
The CounterStrike brand is known for its advanced safety features and ease of handling compared to traditional gas piping solutions.
Product Information
Standard Information
-
Brand: Omega Flex
-
Part Number: FGP-CS-750-100
Technical Specifications
-
Material: Stainless Steel
-
Inside Diameter: 0.82 inches
-
Outside Diameter: 1.14 inches
-
Wall Thickness: 0.01 inches
-
Length: 100 feet
-
Temperature Rating: -20 to 200 degrees Fahrenheit
-
Working Pressure: 25 psi
-
Series: CounterStrike
-
Standards/Approval: ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM E84, UL 723
