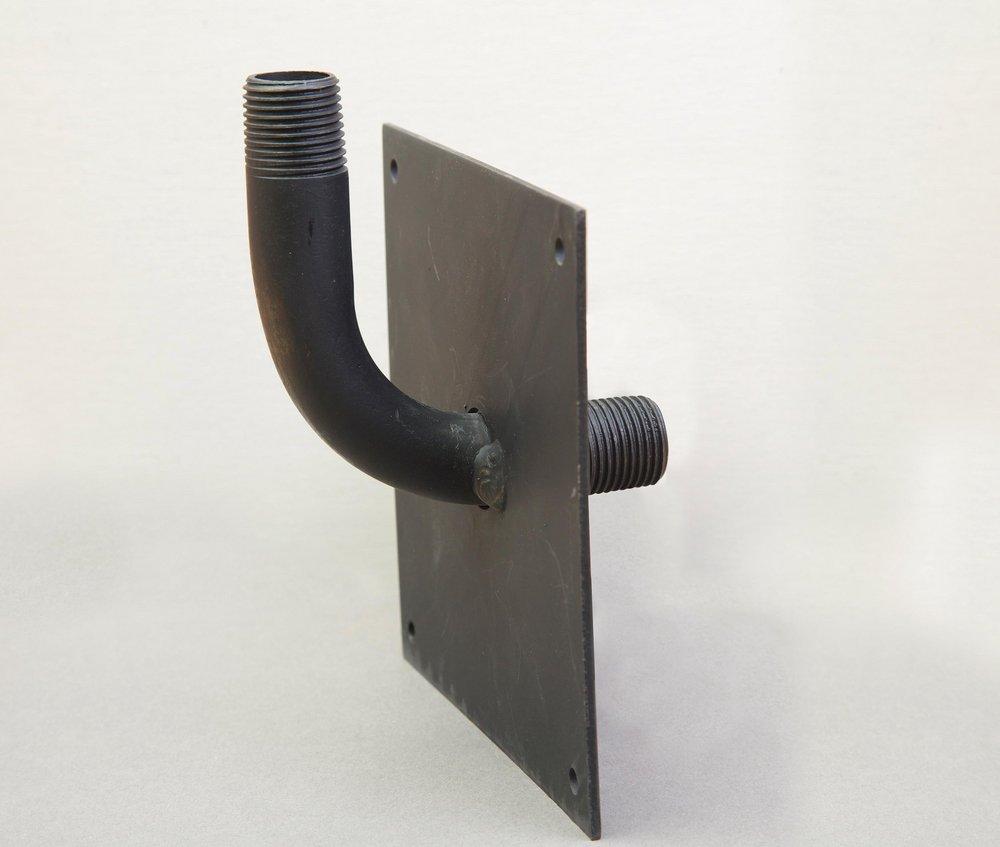

Omega Flex FGP-ASP90S-500 1/2 In. 90 Degree Stub-Out

Product Description

The Omega Flex FGP-ASP90S-500 is a 1/2 inch, 90-degree stub-out designed for flexible gas piping systems. This product is suitable for use with TracPipe and CounterStrike piping systems.

• Constructed from brass and carbon steel for durability.
• Easy installation with a precise fit for flexible gas lines.
• Operates efficiently in various temperature settings.

Product Highlights

The stub-out is ideal for movable appliance locations and is designed to be used in accordance with the TracPipe design guide. Ensure proper installation for optimal performance and safety.

Product Information

Standard Information

• Brand: Omega Flex
• MPN: FGP-ASP90S-500

Technical Specifications

• Type: Stub-Out
• Nominal Size: 1/2 inch
• Angle: 90 degrees
• Material: Brass/Carbon Steel
• Dimensions: 1/2 inch x 90 degrees
• Max Operating Pressure: 125 psig
• Width: 3.5 inches
• Height: 5 inches
• Length: 5.75 inches
