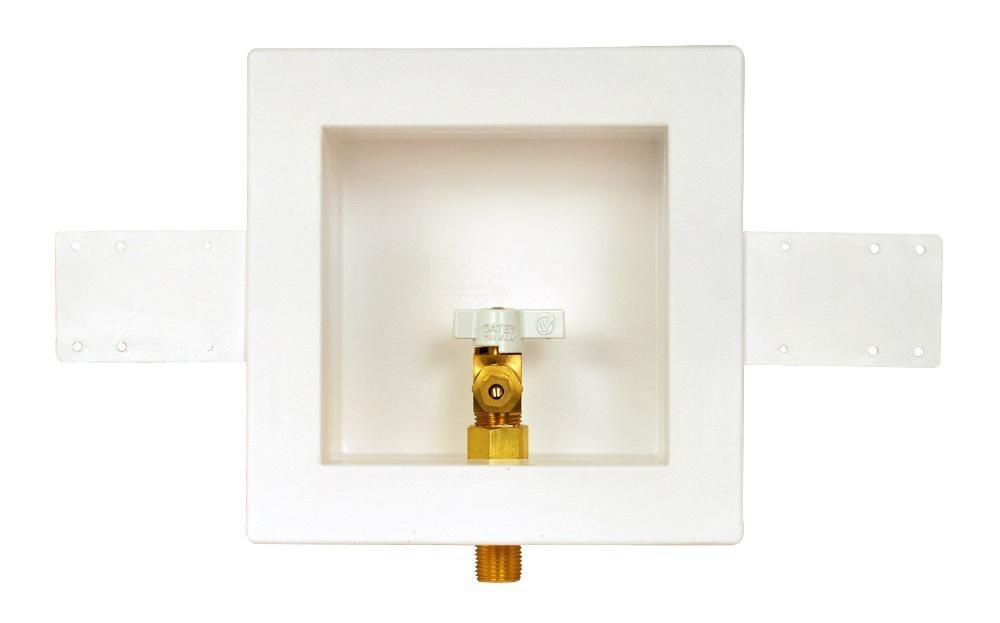

Oatey 39156 Square Ice Maker Outlet Box Without Hammer 1/4 Turn CPVC LL

Product Description

The Oatey 39156 Square Ice Maker Outlet Box provides a safe and efficient water supply and shut-off for refrigerator ice makers and water dispensers. This box is designed for use with a 1/4 turn CPVC low lead ball valve and is constructed from high impact polystyrene. It fits standard wall applications in both residential and commercial settings.

• Square design
• Includes two support brackets
• Snap-on faceplate accommodates up to one inch drywall

Product Highlights

This outlet box is valuable for installations where supply valves need to be recessed into the wall. A water hammer arrester can also be included to absorb shock from quick closing valves, adding to the overall reliability.

Product Information

Standard Information

• Brand: Oatey
• MPN: 39156

Technical Specifications

• Type: Ice Maker Box
• Dimensions: 6 inches wide x 6 inches high x 3-3/8 inches deep
• Material: High impact polystyrene
• Suitable For Use With: 1/4 turn CPVC low lead ball valve
• Faceplate Dimensions: 8-1/4 inches width x 8-1/4 inches height
• Weight: 1.05 pounds
• Applicable Standards: NSF 61, Section 9
