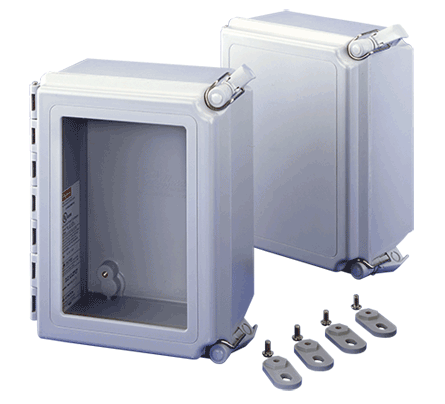

nVent A1086CHSCFG HOF 10X8X6 FIBERGLASS ENCLOSURE

Product Description

The nVent A1086CHSCFG is a fiberglass enclosure designed for electrical applications. With dimensions of ten inches in height, eight inches in width, and six inches in depth, it provides ample space for housing electrical controls.

• Material: Halogen-free fiberglass
• NEMA 4X/IP66 rated for weather protection
• Wall mounting capability with padlock latch

Product Highlights

This enclosure is ideal for use in outdoor and corrosive environments, ensuring the protection of sensitive electrical components.

Product Information

Standard Information

• Manufacturer: nVent
• Product Name: HOF 10X8X6 Fiberglass Enclosure Less Panel

Technical Specifications

• Height: 10 inches
• Width: 8 inches
• Depth: 6 inches
• Color: Light Gray
• Cover Type: Continuous Hinged/Screw
• Lock: Padlock Latch
• Material: Fiberglass
• NEMA Rating: NEMA 4X/IP66
• Panel Size: 8.75 x 6.88 inches
• Series: A48
• Standards/Approvals: RoHS Compliant, cUL Listed, CSA C22.2 File No. 94
