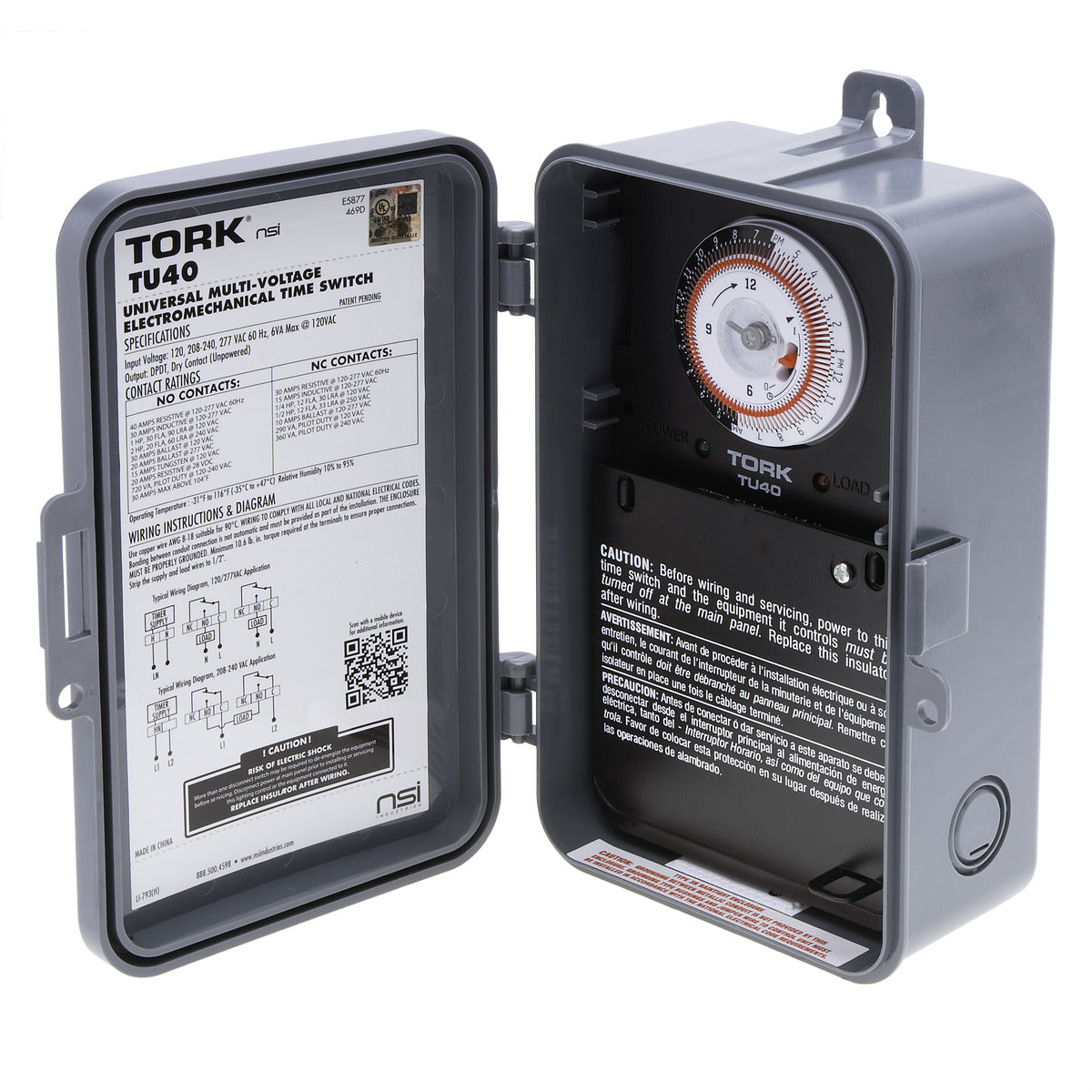

NSI TU40 ON/OFF Mechanical Time Switch With Photocontrol and Bypass

Product Description

The NSI Tork TU40 is an ON/OFF mechanical time switch. It features photocontrol and has a setting range of twenty-four hours. This product works with voltages of one hundred twenty, two hundred eight, two hundred forty, and two hundred seventy-seven volts AC. The timer is suitable for controlling lighting, pumps, signs, air conditioning units, water heaters, and fan operations.

• Automatic input voltage detection
• Real-time clock with day/night settings
• Lockable for safety

Product Highlights

This time switch can handle up to two horsepower and has a dual-pole design with DPDT contacts.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Time Setting: 24 hr
• Amperage Rating: 40 A
• Voltage Rating: 120/208/240/277 VAC
• Horsepower: 2 hp
• Dimensions: 5.625 in L x 4.5 in W x 8.312 in H
• Temperature Rating: -31 to 116 deg F
• Contact Configuration: DPDT
• Enclosure Type: NEMA 3R
