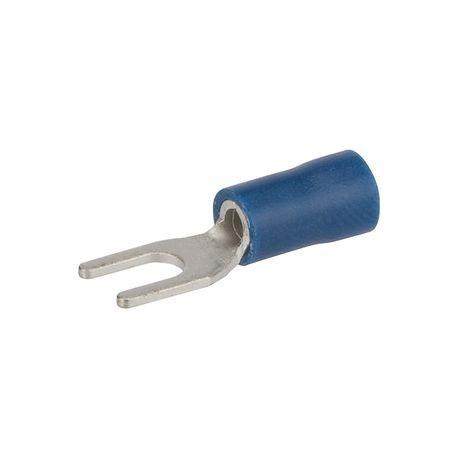

NSI S16-8V-S Miniterms S Series Insulated Spade Terminal 16 to 14 AWG

Product Description

The NSI S16-8V-S Miniterms S Series Insulated Spade Terminal is designed for use with 16 to 14 AWG conductors. This terminal is suitable for free-standing studs and wire termination applications, ensuring a reliable connection. The open tongue end facilitates quick installation on mounting screws, enhancing efficiency during wiring tasks.

• Open tongue end for fast mounting
• Suitable for various wiring applications
• Made from durable copper material

Product Highlights

This insulated spade terminal features a butted seam barrel for strength and reliability. It is electro-plated tin finished for enhanced conductivity and corrosion resistance.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Series: S Series
• Voltage Rating: 300 VAC
• Conductor Size: 16 to 14 AWG
• Length: 1.103 inches
• Finish: Electro-Plated Tin
• Material: Copper
• Barrel Type: Butted Seam
• Tongue Size: 0.388 inches wide
• Stud Size: #8
• Temperature Rating: 75 degrees C
• Standard & Approvals: cULus Listed, KM Approved
