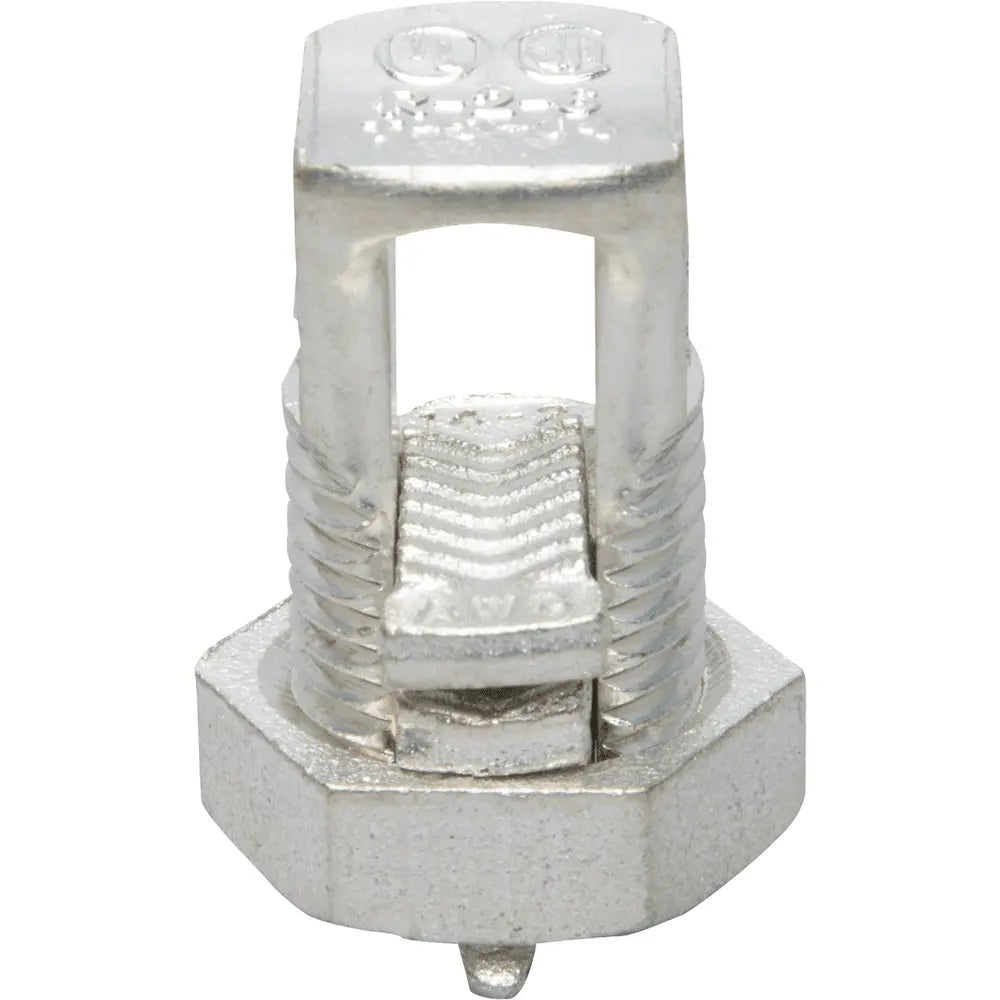

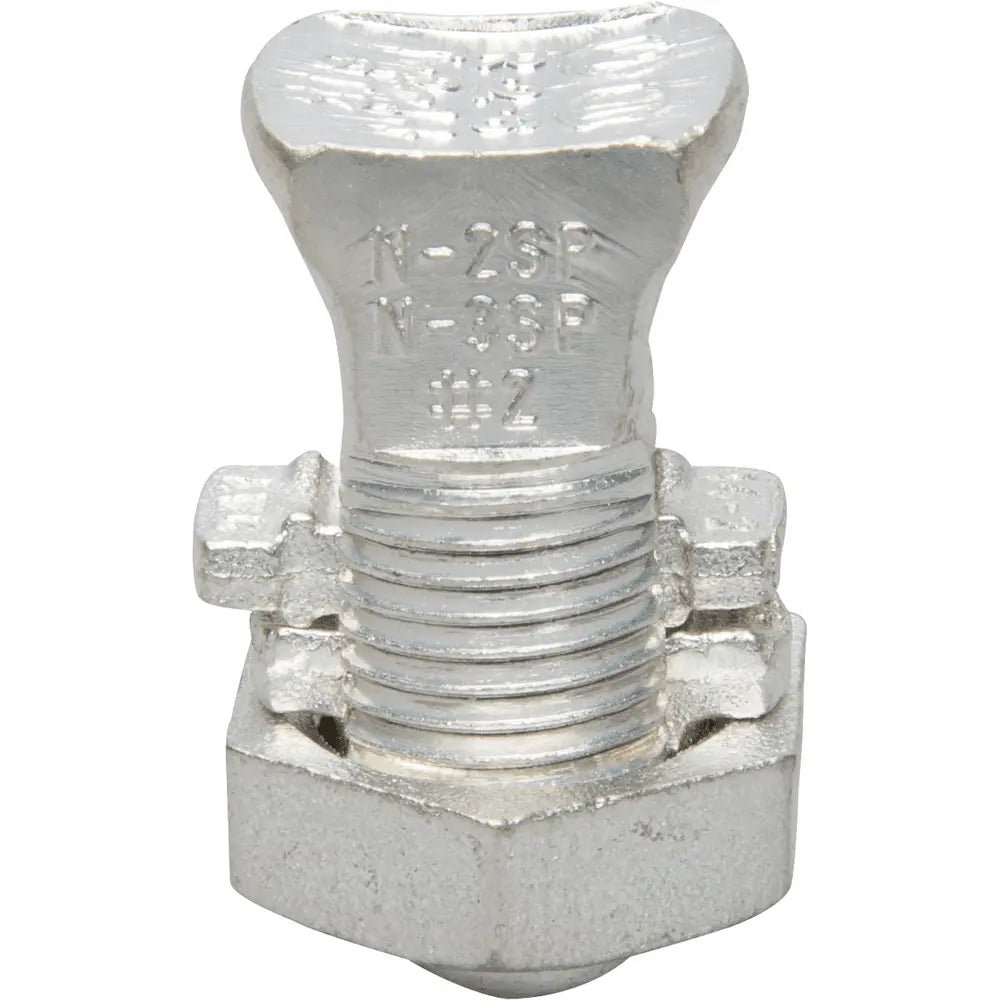

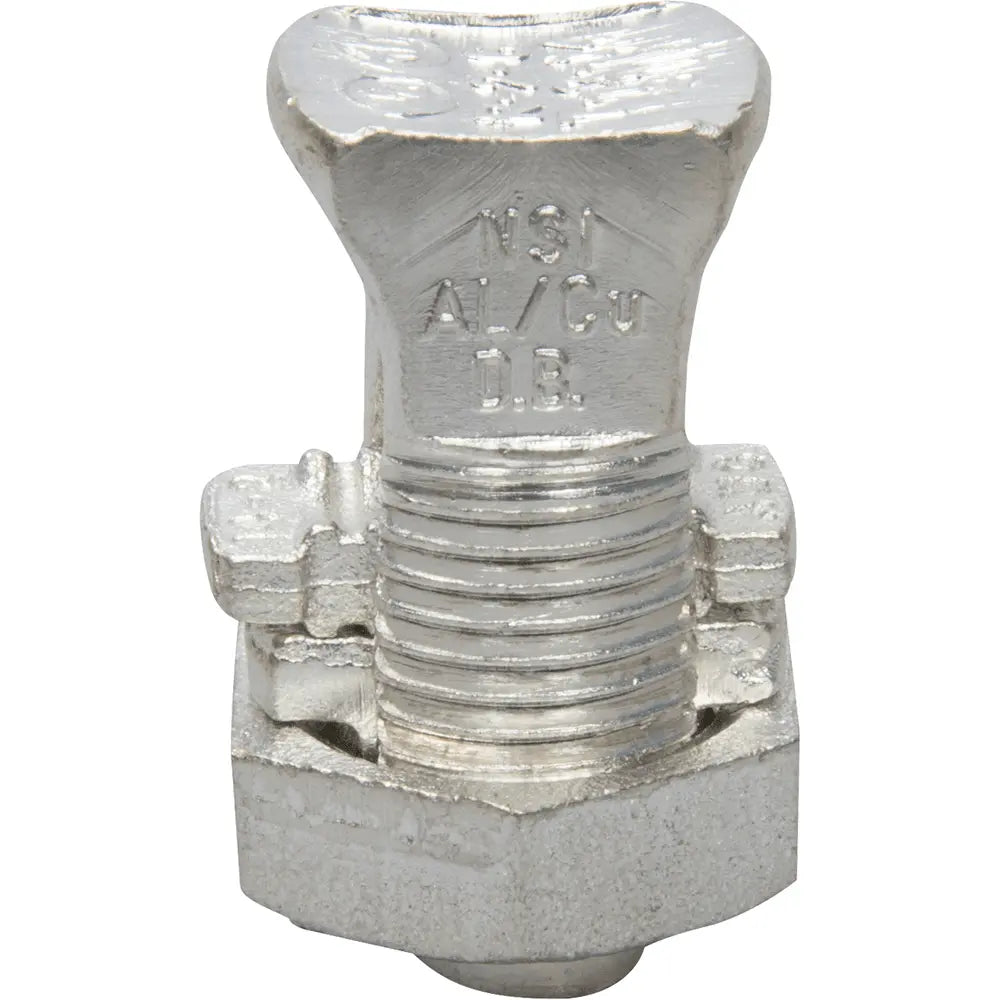

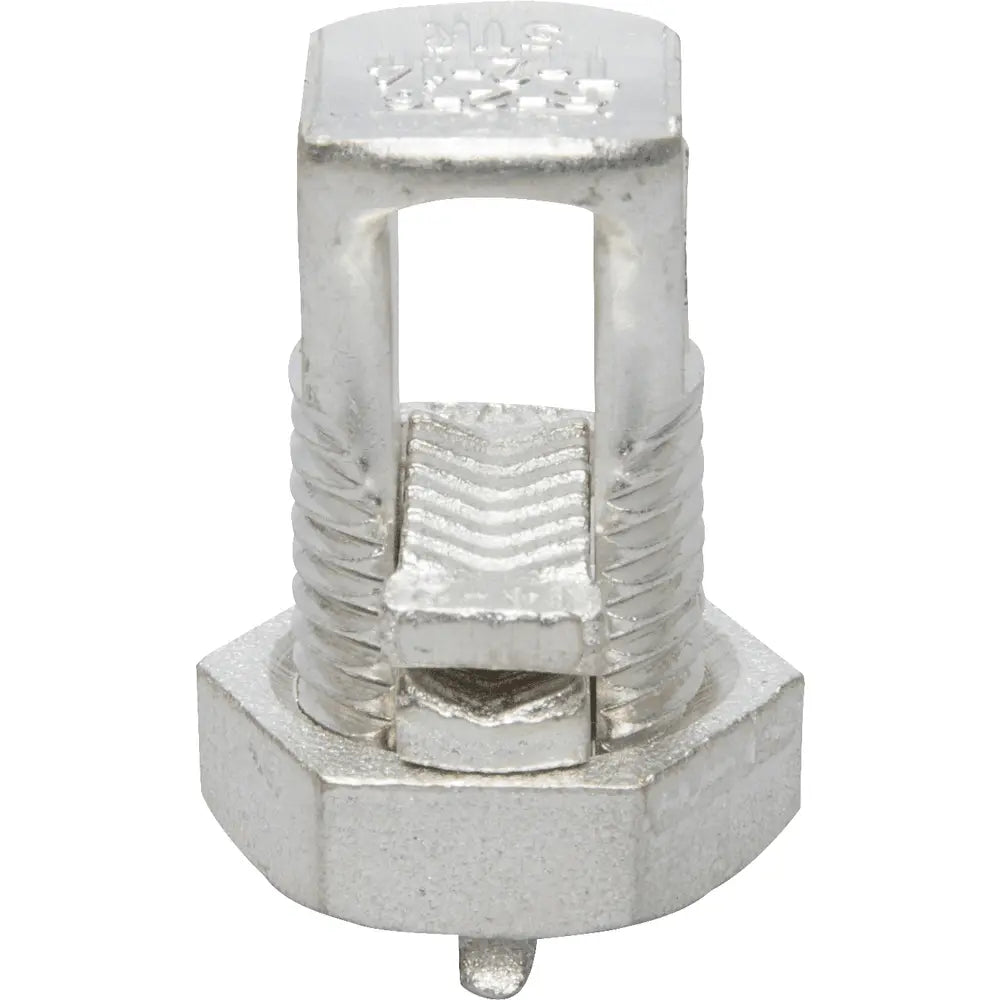

NSI N-2SP Copper Split Bolt, 2 AWG

Product Description

The NSI Supplies N-2SP Copper Split Bolt is a reliable electrical fitting designed for efficient wire connections. This connector accommodates wires ranging from eight AWG to two AWG, offering versatility for use in various electrical applications. The copper construction with a tin-plated finish ensures durability and corrosion resistance.

• Compatible with multiple wire types: copper, aluminum, and ACSR.
• UL listed for safe electrical use.
• Includes nut, spacer, and pressure pad for secure connections.

Product Highlights

This split bolt connector is suitable for joining aluminum to copper, aluminum to aluminum, steel to aluminum, and copper to copper.

Product Information

Standard Information

• Manufacturer: NSI
• Part Number: N-2SP

Technical Specifications

• Material: Copper
• Standard: UL486B
• Conductor Range: Eight AWG to two AWG
• Torque Rating: 275 lb-Inch
• Temperature Rating: 194°F
• Dimensions: 1.35 inches long x 0.75 inches wide
• Environmental Conditions: Dry Location
