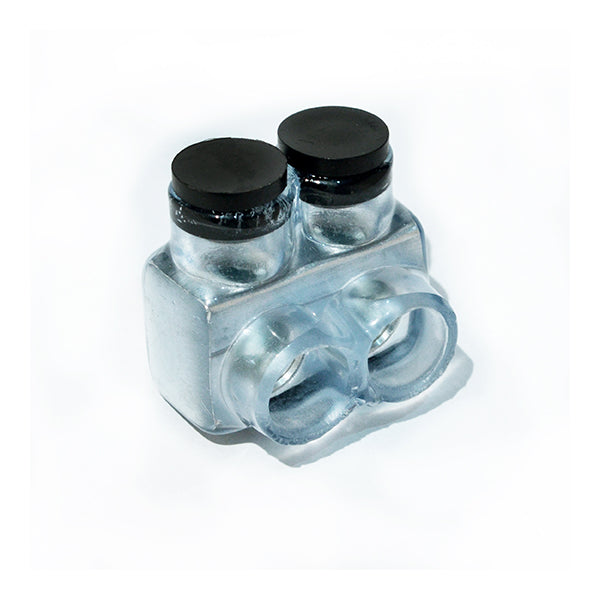

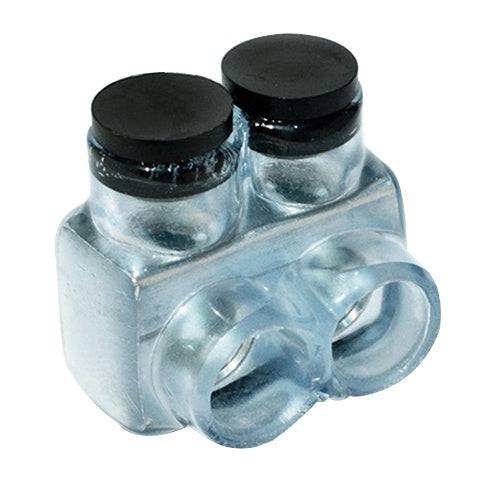

NSI IT-3/0C NSI Polaris Vision Tap IT Series Dual Rated Single Sided Entry

Product Description

The NSI Polaris Vision Tap IT-3/0C is a pre-insulated connector designed for dual-rated applications. This tap can accommodate conductors from six to three-aught American Wire Gauge (AWG). It is suitable for both copper and aluminum conductors and is rated for 600 volts.

• Dual rated for copper and aluminum conductors
• Temperature rated at ninety degrees Celsius
• Connector dimensions are one point eighty-four inches in length, one point seventy-five inches in width, and one point eighty-seven inches in height

Product Highlights

The connector features a single-sided entry design, which allows for efficient wire placements. It has a plastisol insulation that enhances durability and resistance to abrasion and chemicals.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: IT-3/0C

Technical Specifications

• Type: Dual Rated Single Sided Entry
• Voltage Rating: 600 V
• Conductor Size: 6 to 3/0 AWG
• Conductor Type: Copper/Aluminum
• Material: Plastisol
• Temperature Rating: 90 deg C
• Installation Torque: 250 lb-Inch
• Number of Ports: 2
