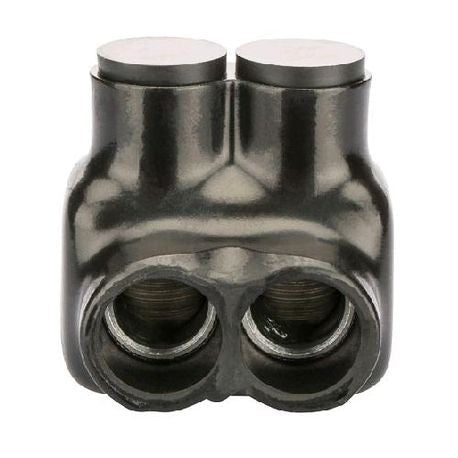

NSI IT-250 IT Series Double Sided Entry Insulated Multi-Tap Connector, 6 AWG to 250 kcmil Aluminum/Copper Conductor, Plastisol

Product Description

The NSI IT-250 is a double-sided entry insulated multi-tap connector designed for both aluminum and copper conductors. It supports conductor sizes ranging from six AWG to two hundred fifty kcmil. This connector is ideal for in-line splicing and wire termination applications.

• Insulated tap connectors are suitable for connecting two wires.
• Supplied with removable access plugs to cover entry ports not in use.
• Available in two styles for connection from same or opposite sides of the connector.

Product Highlights

This product ensures a safe and secure connection while maintaining high performance under varying conditions.

Product Information

Standard Information

• Manufacturer: NSI Industries
• MPN: IT-250

Technical Specifications

• Conductor Size: 6 AWG to 250 kcmil
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degree Celsius
• Material: Plastisol
• Dimensions: 2.12 inches L x 2.25 inches W x 2.25 inches H
• Type: Double Sided Entry
• Resistance: Abrasion, Chemical, UV
