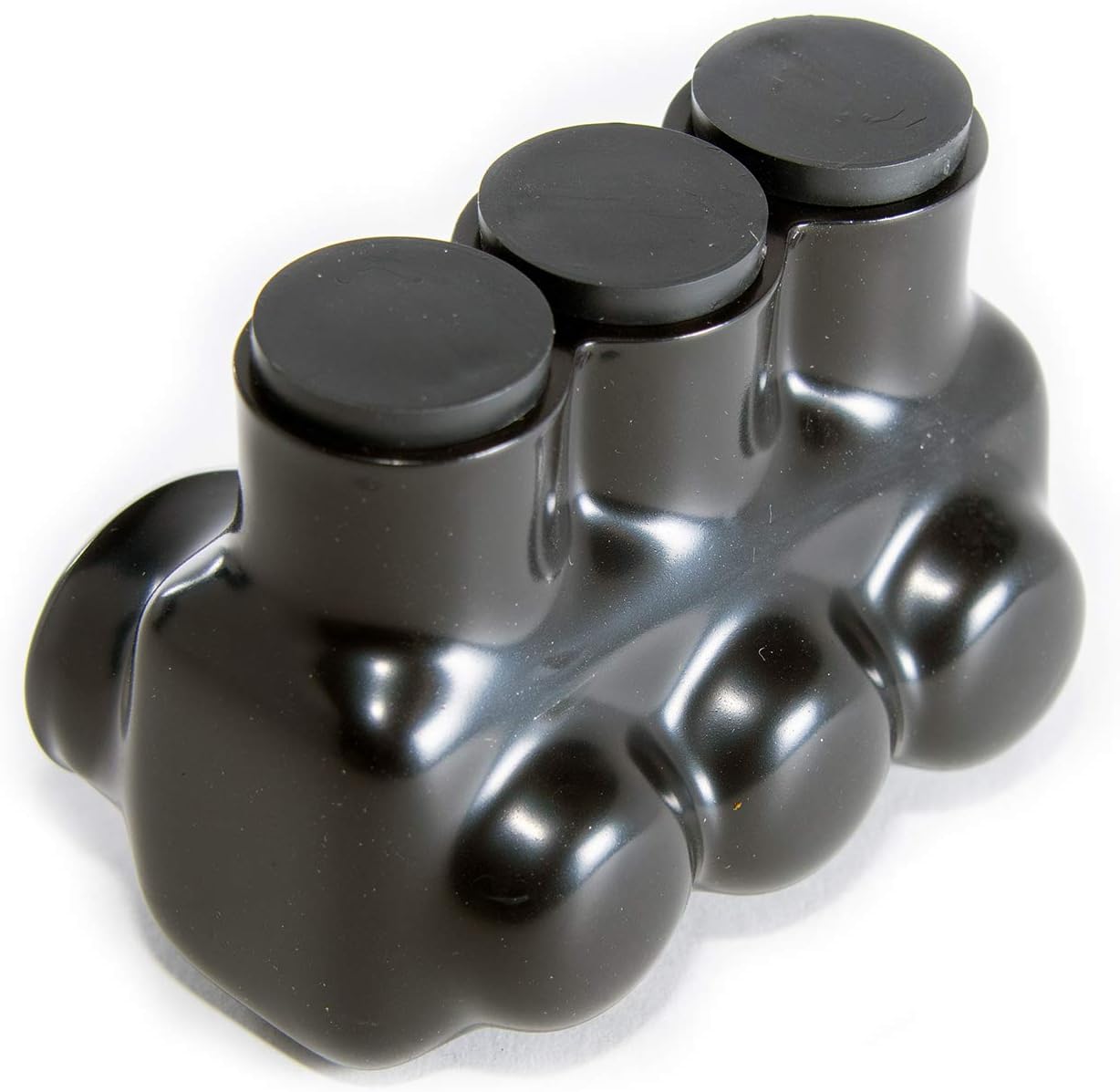

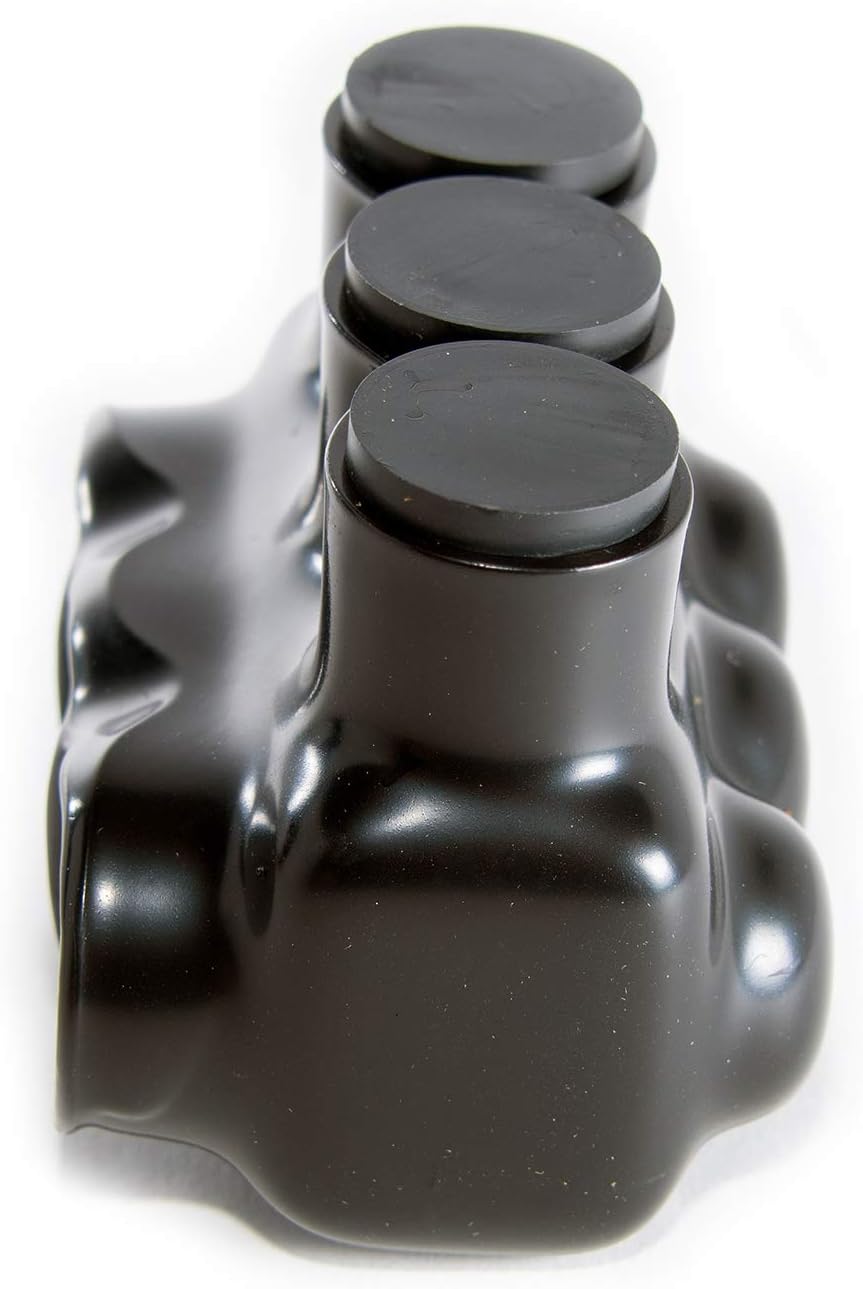

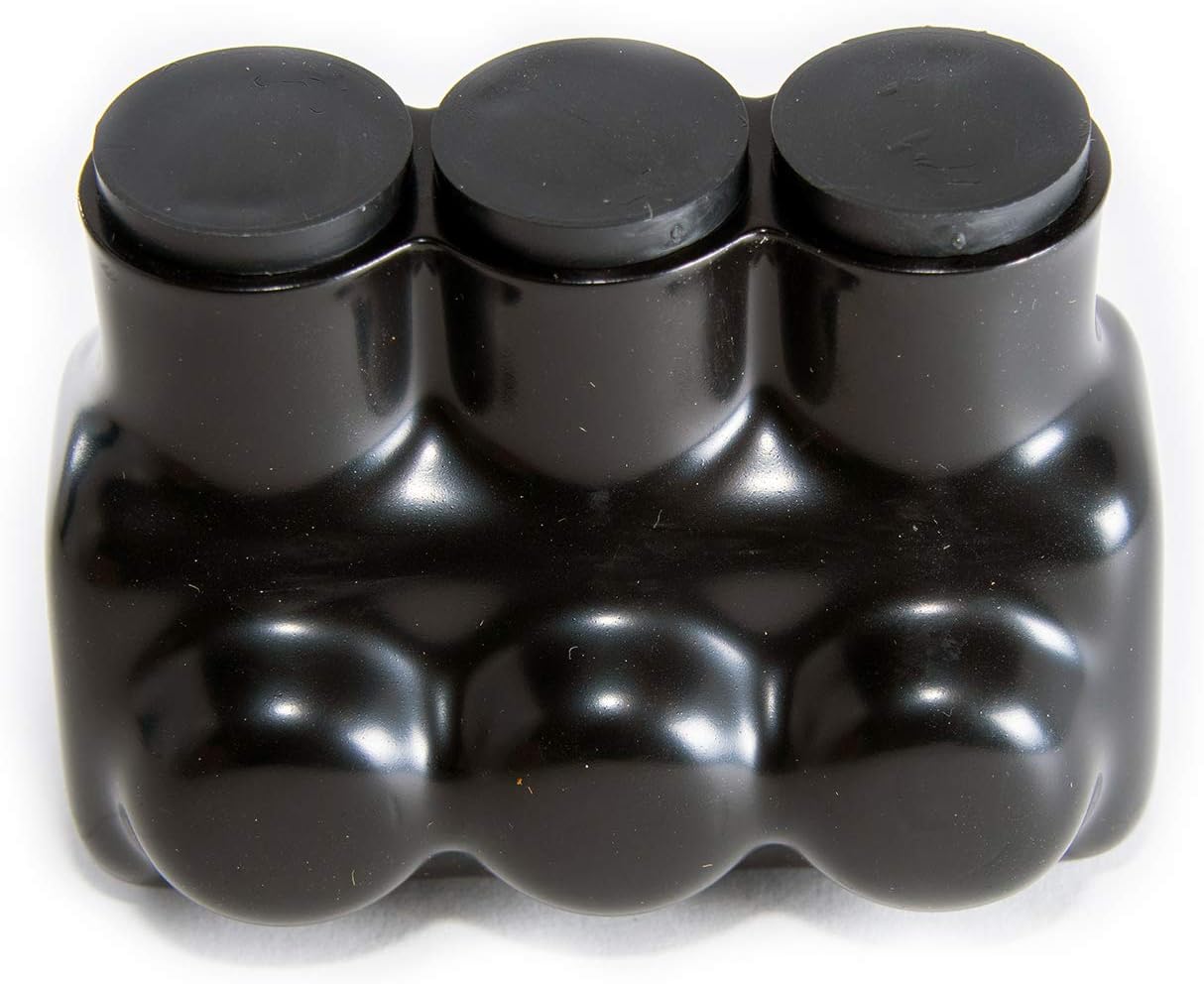

NSI IPLD250-3 IPLD Double Sided Entry Insulated Multi-Tap Connector, 6 AWG to 250 kcmil Aluminum/Copper Conductor, Plastisol

Product Description

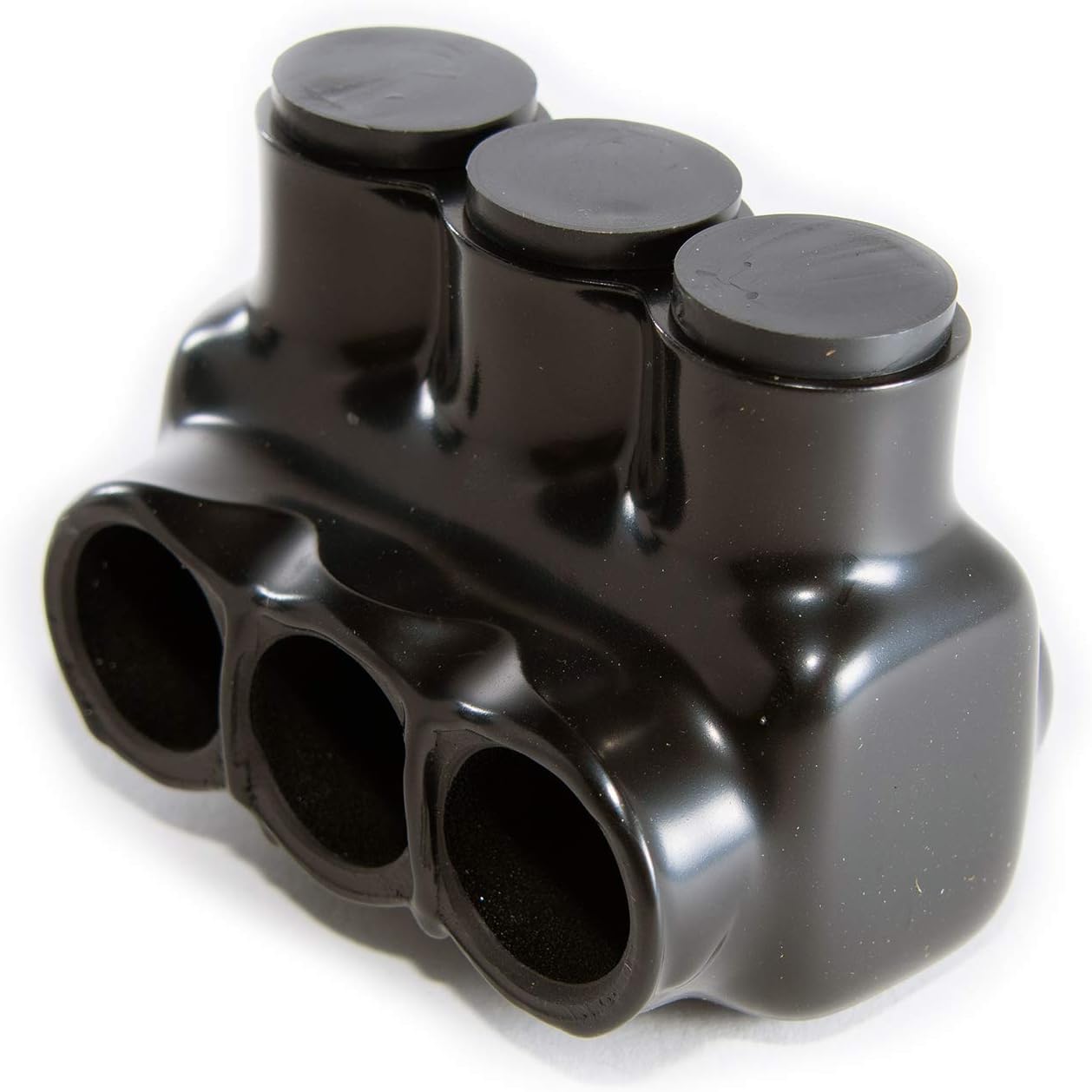

The NSI IPLD250-3 is a reliable insulated multi-tap connector block. This product is designed for both aluminum and copper cables, accommodating sizes from six AWG to two hundred fifty kcmil. Featuring two access ports, the connector allows for wire entry from either side which enhances installation flexibility.

• Constructed using dielectric strength plastisol for mechanical protection.
• Offers dual rating compatibility, suitable for copper and aluminum conductors.
• Lightweight design allows easy handling and installation.

Product Highlights

This insulated connector is a significant offering from NSI, known for its durability and efficiency in electrical connections.

Product Information

Standard Information

• Brand: NSI
• Model Number: IPLD250-3

Technical Specifications

• Dimensions: 2.93 inches L x 2.28 inches W x 2.18 inches H
• Weight: 0.35 lb
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Current Rating: 6 Amps
• Number of Contacts: 3
• Conductor Size: 6 AWG to 250 kcmil
• Material: Plastisol
