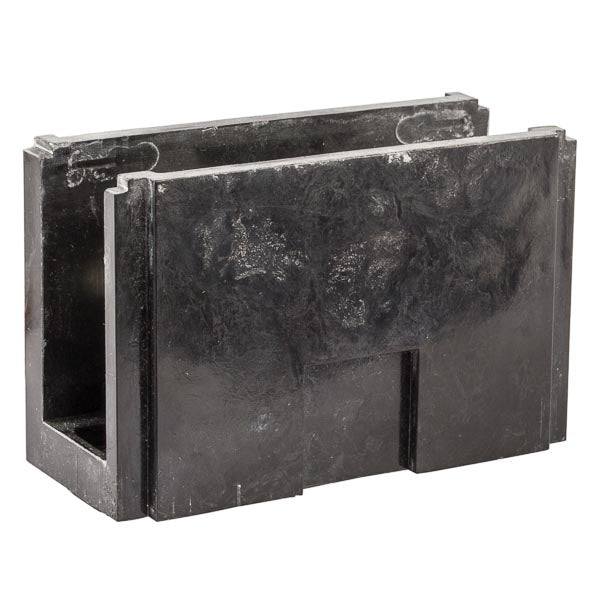

NSI AS-K1-H4 Single Primary Power Distribution Block 600 VAC 175 A

Product Description

The NSI AS-K1-H4 is a single primary power distribution block with a voltage rating of six hundred VAC and an amperage rating of one hundred seventy-five A. It features one pole, making it suitable for various electrical applications. The connector block accepts wire sizes from fourteen to two aught AWG, allowing versatile usage in electrical installations.

• Voltage rating: 600 VAC
• Amperage rating: 175 A
• Wire size compatibility: 14 to 2/0 AWG

Product Highlights

This power distribution block is designed for robustness and effectiveness in power management. It is constructed from high-strength aluminum and features a glass-filled polyester base for durability.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Brand: NSI

Technical Specifications

• Type: Single Primary
• Color: Black
• Amperage Rating: 175 A
• Voltage Rating: 600 VAC
• Dimensions: 2.9 in L x 1.04 in W x 2.34 in H
• Material: Aluminum
• Primary Connections/Pole: 1
• Secondary Connections/Pole: 4
• Wire Size: 14 to 2/0 AWG
