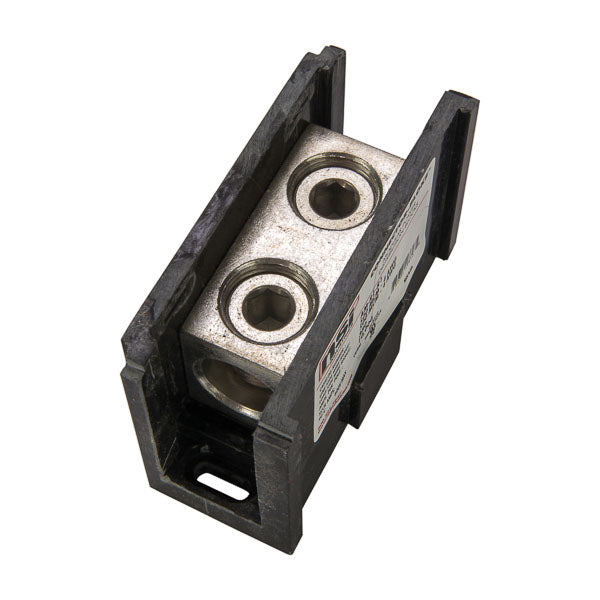

NSI AM-R1-R1 Splicer/Reducer Power Distribution Block 600 VAC 1 Pole AM-R1-R1

Product Description

The NSI AM-R1-R1 is a splicer/reducer power distribution block designed for voltage up to six hundred VAC and a current rating of three hundred eighty amps. It supports one pole and accommodates wire sizes from four AWG to five hundred kcmil. This aluminum block is designed for strength and conductivity, making it suitable for demanding applications.

• Suitable for one primary and one secondary connection per pole.
• Made from high conductivity aluminum.
• Compatible with various wire sizes for flexible installation.

Product Highlights

This power distribution block provides reliable and efficient electrical connections in various applications, particularly in residential and commercial electrical systems.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Brand: NSI

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 380 A
• Number of Poles: 1
• Primary Connections/Pole: 1
• Secondary Connection/Pole: 1
• Wire Size: 4 AWG to 500 kcmil
• Material: Aluminum
• Dimensions: 4 in L x 1.71 in W x 2.62 in H
