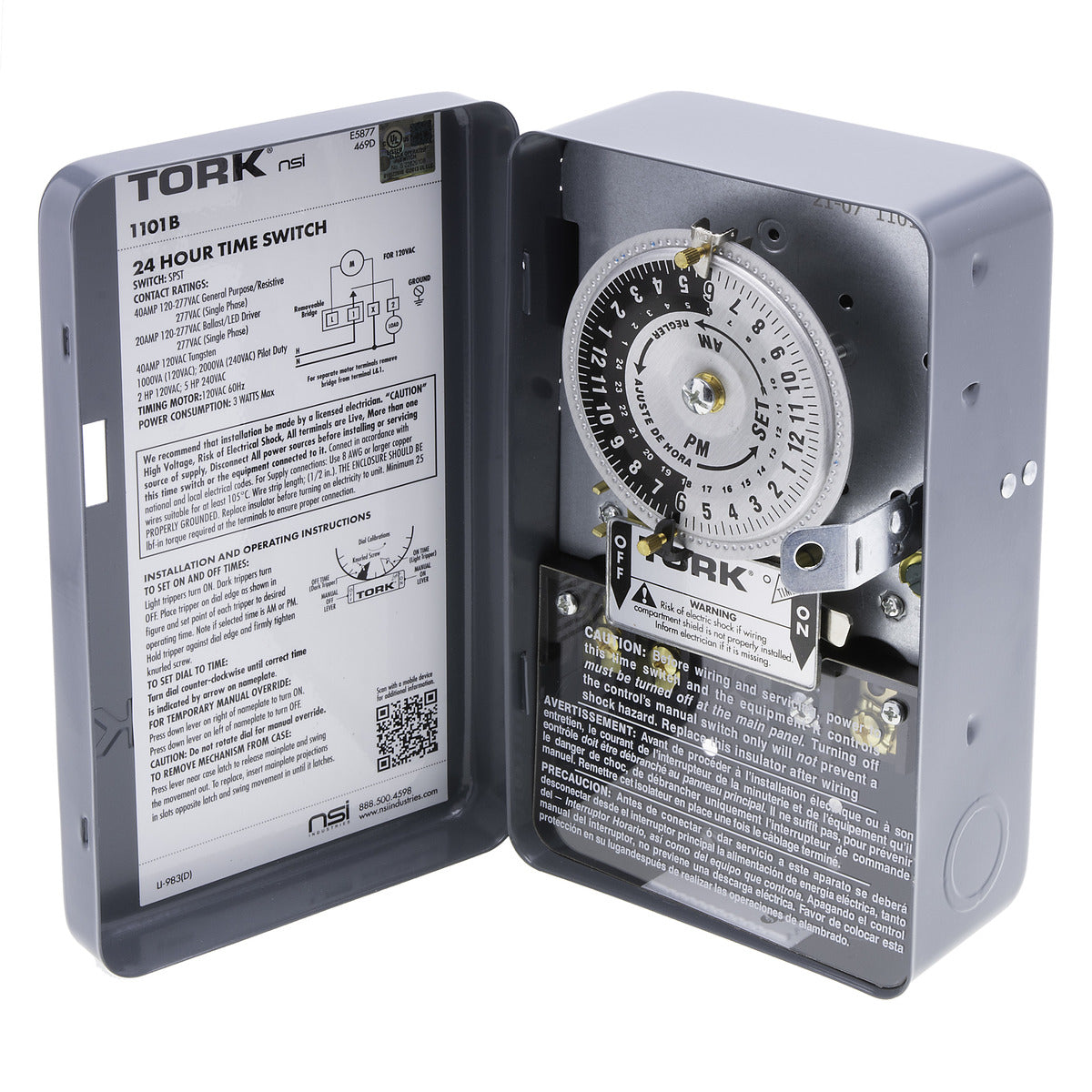

NSI 1101B 1100 On/Off Mechanical Time Switch 24 hr Time Setting 120 VAC 2 hp

Product Description

The NSI Tork 1101B is a mechanical time switch designed for reliable operation in on/off applications. This switch is rated for use at 120 VAC, supporting loads up to 2 horsepower with an SPST contact form.

• Time setting range of twenty-four hours
• Mountable indoors with a robust metal enclosure
• Includes a lockable hasp for added security

Product Highlights

Designed for various applications, this time switch is suitable for lighting control, pump operation, signs, air conditioning, water heating, and fan control. The durable construction and adjustable timing settings enhance usability in both residential and commercial settings.

Product Information

Standard Information

• Brand: NSI
• MPN: 1101B

Technical Specifications

• Dimensions: 4.687 inches (L) x 2.937 inches (W) x 7.937 inches (H)
• Operation Mode: 24 hr
• Voltage Rating: 120 VAC
• Horsepower: 2 hp
• Amperage Rating: 40 A
• Temperature Rating: -40 to 165 deg F
• Mounting Type: Threaded
• Enclosure Type: NEMA 1
