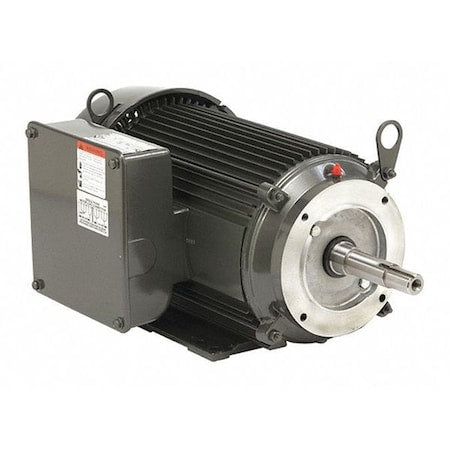

Nidec Motor Corporation WD12C2JC Washdown Motor, 1/2 HP, 1725 RPM, 115/208-230 V, C-Face
In Stock - Ships in 1-2 business days
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.
Specifications:
Motor Phase: 1 ph
Motor Horsepower: 0.50 hp, 1/2 hp
Synchronous RPM: 1800 rpm
Motor Supply Voltage: 115 V, 208 V to 230 V
Frame Size: 56C
Enclosure Type: TEFC
Frequency Rating: 60 Hz
Mounting Type: C-Face, Base
Base RPM: 1725 rpm
Duty / Condition Type: Continuous
Full Load Current: 9.50 / 4.604.80 A
Motor Poles: 4
Shaft Diameter: 0.63 in
Overall Length (C-Dimension): 12.8 in
NEMA Design Class: N
Service Factor: 1.15
Frame Material: Steel
Insulation Class: F
Standards Met: USDA, BISSC, NEMA
Weight: 26 lb
Maximum Allowable Current: 4.6 to 4.8 A, 9.5 A
Product Type: AC Motors
Torque: 24.3 ft-lbs
