Product Description

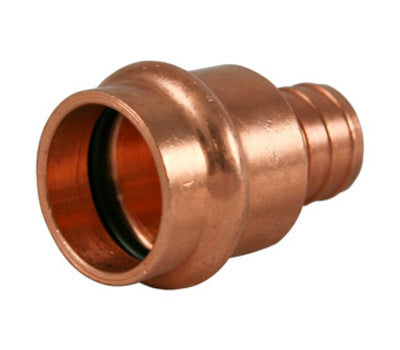

The Nibco PC604-P 1 inch PEX x Press Wrot Copper Adapter is designed for use in various water supply systems. This lead-free adapter features an inboard bead and an EPDM O-ring that ensures a watertight seal when pressure is applied with a pressing tool.
- Connects PEX tubing with copper piping
- No need for flame, solder, or flux
- Suitable for residential and commercial applications
Product Highlights
This adapter is ideal for joining PEX tube in residential and commercial water distribution systems, radiant floor heating, municipal water supplies, geothermal climate control, snow melt, and drip irrigation. The design allows for underground installation and ensures a secure connection without the need for soldering or flames.
Product Information
Standard Information
Technical Specifications
-
Material: Copper
-
Application: Residential and commercial hot, chilled, process water applications for plumbing and HVAC systems
-
Selling Size: 1 In
-
Material Grade: C12200
-
Connection Type: PEX x Press
-
Specifications Met: ASTM B75 Alloy C12200, ANSI/NSF 61 Annex G, CSA MSE 13 and PS-117, UPC
-
Manufacture Process: Wrot
-
Maximum Pressure Rating: 200 PSI
-
Maximum Temperature Rating: 250 Degrees Fahrenheit
-
Minimum Temperature Rating: -20 Degrees Fahrenheit
-
Resistance Properties/Features: Dezincification-Resistant
