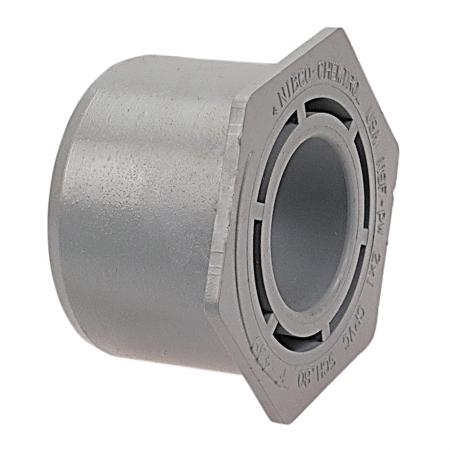

NIBCO CB10600 3/4x1/2 CPVC S80 SPGxSOC BUSHING Replacement CB10600

NIBCO CPVC Schedule 80 Reducing Bushing

Explore the NIBCO CB10600, a durable reducing bushing designed to connect 3/4 inch to 1/2 inch pipe sections reliably. This bushing is an essential tool crafted from CPVC to withstand high temperatures and pressures in commercial piping applications.

• Designed for chemical processing and wastewater treatment systems.
• Endures up to 210 degrees Fahrenheit with a schedule 80 thickness.
• Approved and certified with ASTM F439 and NSF/ANSI 14/61 standards.

Product Highlights

The NIBCO CB10600 bushing is created to facilitate a secure and efficient connection between different pipe sizes. Its construction from chemically resistant CPVC material makes it a preferred choice for handling corrosive materials safely. The bushing's flush design ensures optimal flow dynamics.

Product Information

Standard Information

• Brand: NIBCO
• MPN: CB10600

Technical Specifications

• Type: Flush
• Material: CPVC
• End Style: Spigot x Socket
• Nominal Size: 3/4 x 1/2 inch
• Length: 1.15 inches
• Series: 5118
• Temperature Rating: 210 degrees Fahrenheit
• Schedule Rating: Schedule 80 Extra Heavy
