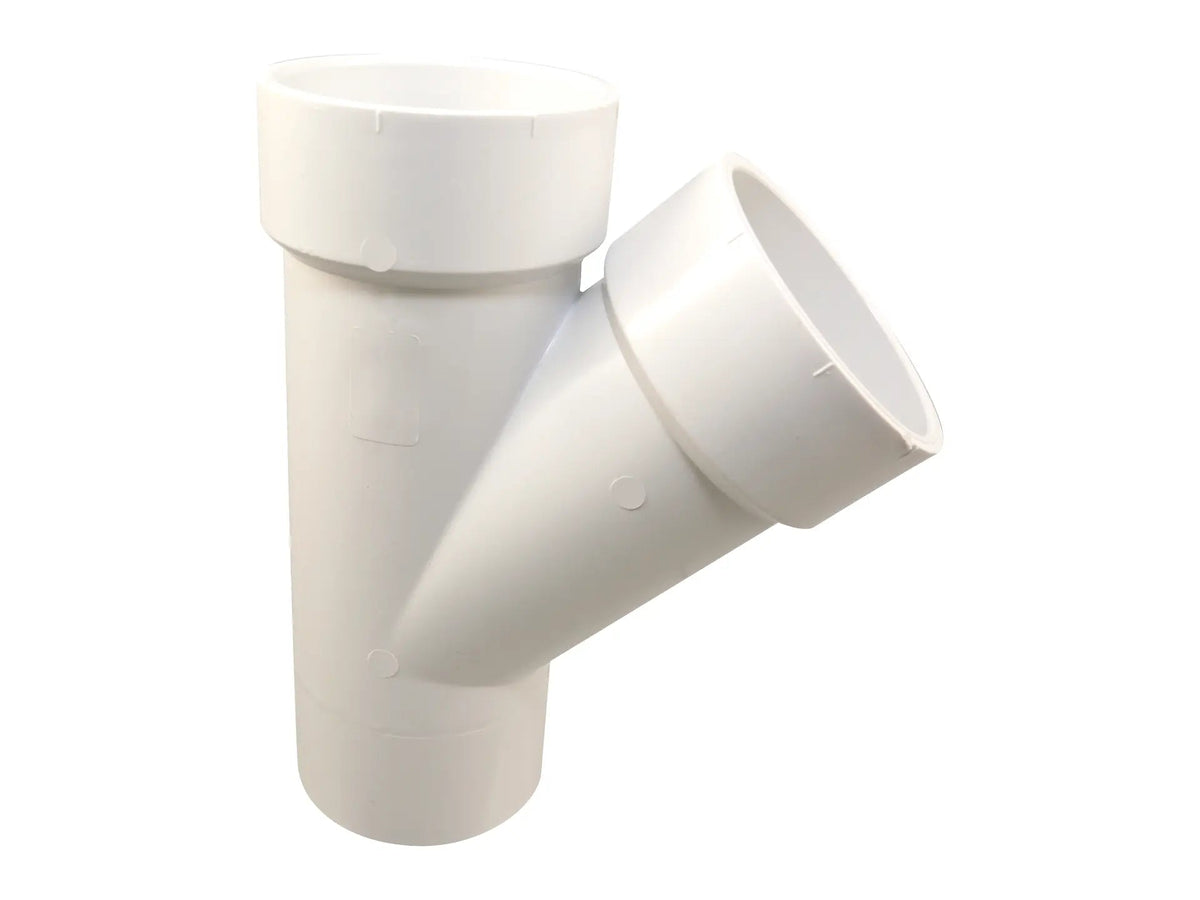

Nibco 4810-2 PVC DWV 45° Street Wye (4 inches x 4 inches x 3 inches)

Product Description

The NIBCO 4810-2 PVC DWV 45° street wye is designed for use in residential and commercial drain, waste, and vent systems. This fitting features a spigot x hub x hub connection, facilitating connections in continuous pipelines and branching out in a different direction. Constructed from polyvinyl chloride (PVC), it offers durability and cost-effectiveness.

• Maximum service temperature 140°F
• Do not test or use with compressed air or other gases
• Easy to install using solvent cementing or threading

Product Highlights

This PVC DWV fitting offers high corrosion and chemical resistance, and will not rust, scale, pit, or corrode. It conforms to ASTM D2665 and D3311 standards.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 4810-2
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: K097540
• Model: 4810-2
• Type of Fitting: Wye
• Type of Wye: Street
• Nominal Pipe Size: 4" x 4" x 3"
• Fitting Bend Angle: 45°
• Material: Polyvinyl Chloride
• Pipe Schedule: 40
• Length: 10.12"
• Width: 9.2"
• Height: 5.02"
• Country of Origin: US
• Potable Water Code: LL Compliant not used potable
• End Style: Spigot x Hub x Hub
• Fitting/Connector Type: Wye
• Schedule Rating: SCH 40
• Series: 4810-2
• Temperature Rating: 140 deg F Service
• Domestic/Import: Domestic
