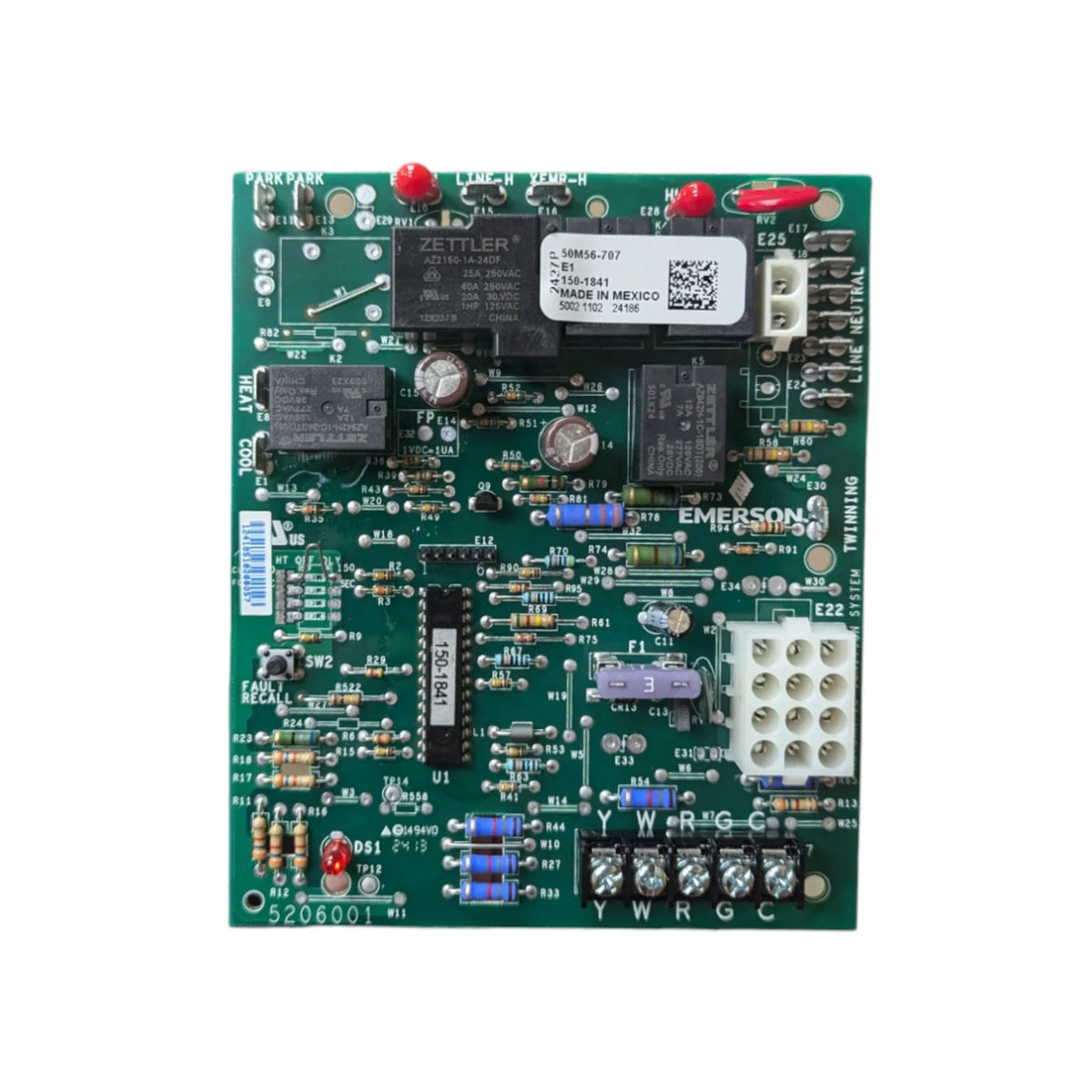

NEUCO 50M56-707 Integrated Furnace Control

Product Description

The NEUCO 50M56-707 is an integrated furnace control suited for Goodman single-stage furnaces. It is designed to be a direct OEM replacement. This control board supports hot surface ignition systems and PSC blower motors. It is compatible with the latest series of Goodman furnaces, ensuring it meets aftermarket requirements. The installation process is simplified by fast drop-in mounting and wiring.

• Direct OEM replacement for Goodman single-stage furnaces.
• Supports hot surface ignition and PSC blower motors.
• Includes tri-color LED for operational status and fault codes.

Product Highlights

This control board facilitates easy troubleshooting and maintenance with its LED display.

Product Information

Standard Information

• Input Voltage: 25 VAC 50/60 Hz
• UPC: 786710559709

Technical Specifications

• Max Input Current @ 25 VAC: 0.45 amp
• Valve Relay Load Rating: 1.5 amp @ 25 VAC 50/60 Hz 0.6 pf
• Ignitor Relay Load Rating: 6.0 amp @ 120 VAC 50/60 Hz (resistive)
• Inducer Relay Load Rating: 2.2 FLA-3.5 LRA @ 120 VAC
• Circulator Relay Load Rating: 14.5 FLA-25.0 LRA @ 120 VAC
• Minimum Flame Current: 1 microamp DC
• Operating Temperature Range: -40 degrees to 176 degrees F (-40 degrees to 80 degrees C)
• Humidity Range: 5% to 93% relative humidity (non-condensing)
• Mounting: Surface mount multipoise
• Flame Establishing Time: 0.8 sec (maximum @ 60 Hz)
• Flame Failure Response Time: 2.0 sec
