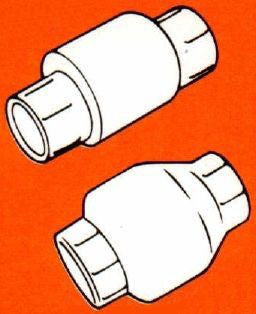

NDS 1520-15 Series 1500 1-1/2 In. Plastic Slip Swing Check Valve

Product Description

The NDS Series 1500 1-1/2 inch Plastic Slip Swing Check Valve, MPN 1520-15, is designed for flow control in plumbing systems. This check valve allows water to flow in one direction only and prevents backflow. It is made from PVC that meets NSF/ANSI 61 and 372 standards, ensuring safety and reliability in drinking water applications. The valve is rated for a static pressure of 125 PSI at seventy-two degrees Fahrenheit, providing excellent durability under pressure.

• NSF/ANSI 61 and 372 certified.
• Rated for 125 PSI static pressure at seventy-two degrees Fahrenheit.
• Compatible with IPS/Schedule 40 pipe.

Product Highlights

This check valve is essential for maintaining proper flow direction and preventing backflow in plumbing systems, making it ideal for residential and commercial use.

Product Information

Standard Information

• Brand: NDS
• MPN: 1520-15

Technical Specifications

• Material: PVC
• Connection Type: Slip x Slip
• Cracking Pressure: 0.25 PSI
• Max Water Pressure: 150 PSI at seventy degrees Fahrenheit
• Max Temperature: 140 degrees Fahrenheit
• Flow Rate: 47.59 GPM
• Dimensions: Five point forty-five inches long, three point sixteen inches wide, three point sixteen inches high
