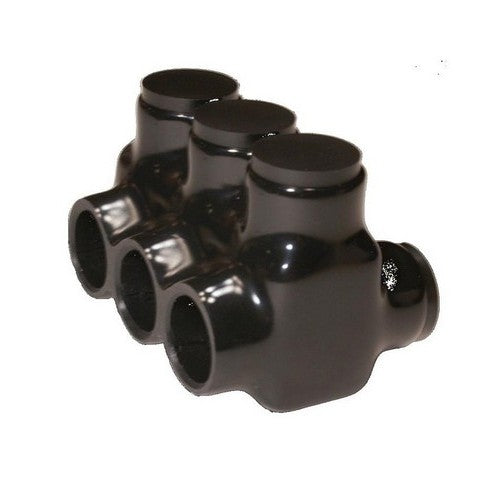

Morris 97643 Insulated Multi-Cable Connector Dual Entry 3-Port 250 - 6

Product Description

The Morris 97643 insulated multi-cable connector is designed for efficient wire connections. This model features a dual entry design with three ports. It can accommodate wire sizes from two hundred fifty to six. Made from CU9AL dual-rated 6061-T6 aluminum, it is suitable for both copper and aluminum wires. This connector comes pre-filled with an oxide inhibitor and is insulated with a durable high-dielectric rubber and vinyl coating. It is recommended for indoor use only.

• Wire entry from either side of the connector for flexibility
• Pre-filled with oxide inhibitor to enhance performance
• Rated up to 194°F (90°C) and suitable for 600 volts

Product Highlights

This insulated multi-cable connector ensures secure wire splicing and allows for easy re-entry, making changes and troubleshooting simple.

Product Information

Standard Information

• Material: CU9AL Dual Rated 6061-T6 Aluminum
• Use: Indoor Use Only

Technical Specifications

• Wire Entry: from either side of the connector
• Insulation: high-dielectric rubber/vinyl coating
• Oxide Inhibitor: pre-filled for enhanced performance
• Re-entry: designed for easy changes and inspection
• Temperature Range: -49°F to 194°F (-45°C to 90°C)
• Listings: ANSI C119.4 & cULus 486b Listed thru 750MCM
• Voltage Rating: 600 volts
• Number of Ports: 3
• Input Wire Range: 250MCM - #6
