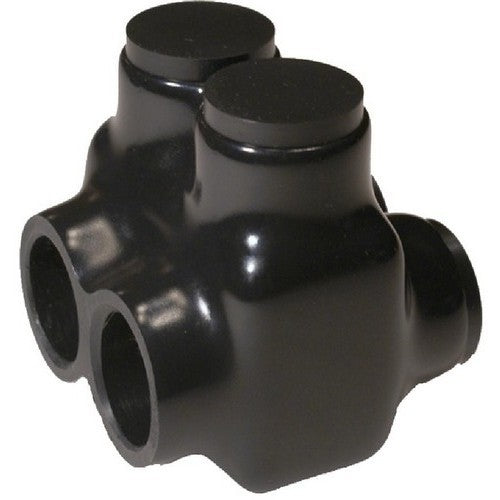

Morris 97121 Insulated 2 Conductor Dual Side Entry Connector

Product Description

The Morris 97121 Insulated 2 Conductor Dual Side Entry connector is designed for reliable electrical connections. This connector is suitable for both copper and aluminum wires, featuring durable construction with a high-dielectric plastisol coating. It is pre-filled with an oxide inhibitor to enhance performance and longevity. The dual side entry allows for easy re-entry, facilitating changes, inspections, or troubleshooting without hassle.

• Dual rated for use with copper and aluminum wires
• High-dielectric plastisol coating for durability
• Pre-filled with oxide inhibitor for enhanced performance

Product Highlights

This insulated connector is ideal for a variety of applications where reliable connections are essential.

Product Information

Standard Information

• Brand: Morris
• Manufacturer: Morris

Technical Specifications

• Wire Range: 500-#6 Wire
• Length: 2.88 inches
• Width: 3.14 inches
• Height: 3.04 inches
• Material: 6061-T6 Aluminum
• Voltage: 600 Volts
• Temperature Range: -49°F to 194°F (-45°C to 90°C)
• Listings: ANSI C119.4 & cULus 486b Listed, UL Listed through 750MCM
• Allen Hex Size: 5/16
