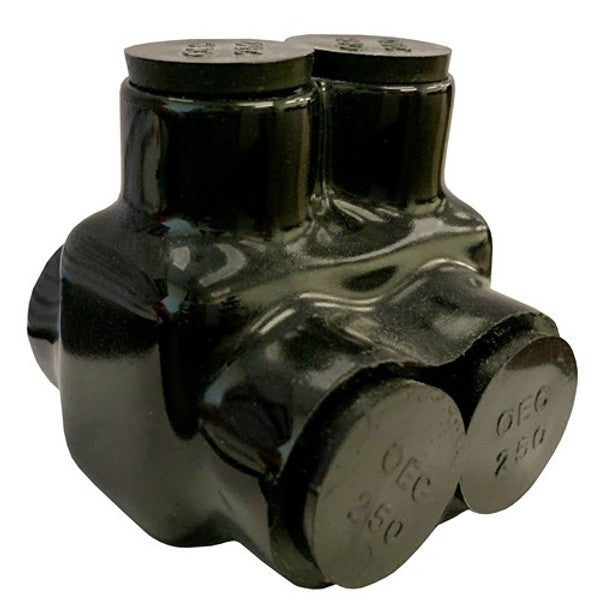

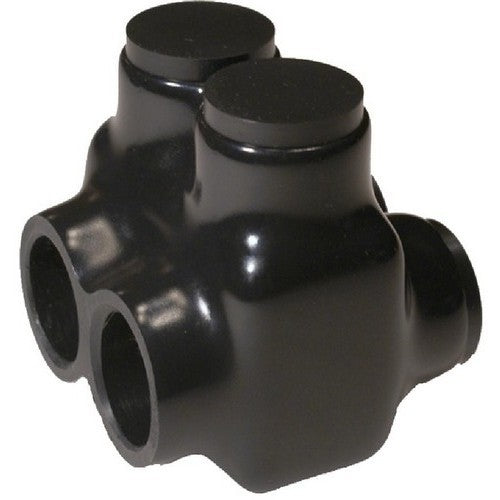

Morris 97117 Insulated Connector Dual Entry Splice Wire Range 3/0 - 6

Product Description

The Morris 97117 is an insulated connector designed for dual-entry splicing. This connector is made from 6061-T6 aluminum and works with both copper and aluminum wires. It features a pre-filled oxide inhibitor and supports wire sizes from 3/0 to 6.

• Dual entry allows for wire insertion from either side.
• Contains a rugged high-dielectric rubber/vinyl coating.
• Rated for use with cables up to 194°F (90°C).

Product Highlights

Product Information

Standard Information

• Product Name: Morris 3/0-2 Insulated Connector Dual (97117)
• Brand: Morris

Technical Specifications

• MPN: 97117
• UPC Code: 601986971171
• Height: 2.37 inches
• Material: 6061-T6 Aluminum
• Item Length: 2.18 inches
• Width: 2.48 inches
• Wire Range: 3/0 - 6
• Conductor Type: Copper and/or Aluminum
• Coating: High-dielectric Rubber/Vinyl
• Temperature Range: -49°F to 194°F (-45°C to 90°C)
• Listings: ANSI C119.4 & cULus 486b
• Certifications: UL/CSA Certified for sizes up to 750MCM
• Voltage: 600 Volt
• Usage: Indoor Use Only
