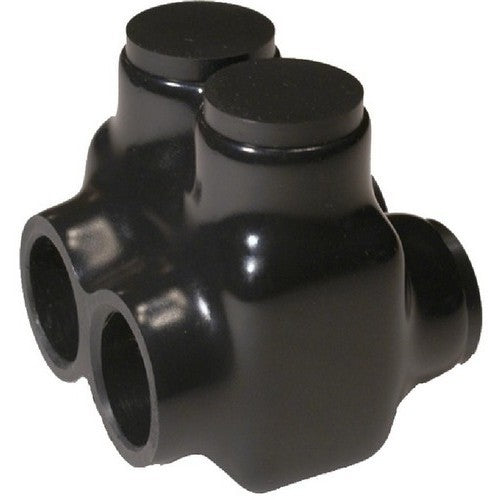

Morris 97116 Insulated Dual Entry Splice 2/0 - 6 Awg 2 Ports

Product Description

The Morris 97116 is an insulated dual entry splice for wire connections. This splice features two ports and is rated for both aluminum and copper conductors. It comes pre-insulated from the factory, removing the need for taping. Each port includes an oxide inhibitor and is marked for maximum wire size identification.

• Dual rated for aluminum and copper conductors
• Factory pre-insulated, eliminating the need for taping
• Each port pre-filled with oxide inhibitor

Product Highlights

This splice is suitable for use in troughs, gutters, panels, ducts, and wireways.

Product Information

Standard Information

• Brand: Morris Products
• Number of Ports: 2

Technical Specifications

• Connector Style: Splice
• Contact Material: Aluminum
• MPN: 97116
• Compatible Mounting Type: Wire
• UPC: 601986971164
• Connector Type: Dual Entry
• Allen Type: 3/16 Hex
• Oxide Inhibitor: Yes, Pre-Filled
• Input Wire Range: 2/0 - #6
• Rated: CU9AL, 600V
• Listings: ANSI C119.4, UL 486B
• Dimensions: 1.69 inches L x 1.88 inches W x 1.93 inches H
