Morris 97115 Insulated 2 Conductor Dual Entry Splice 1/0-14 Wire Range

Product Description

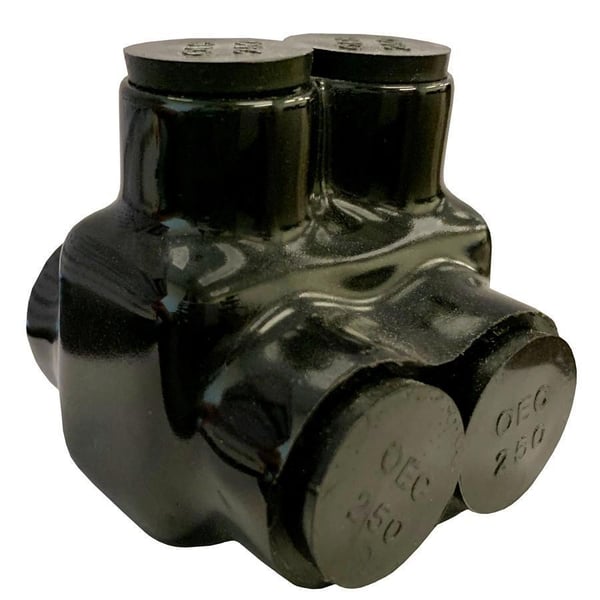

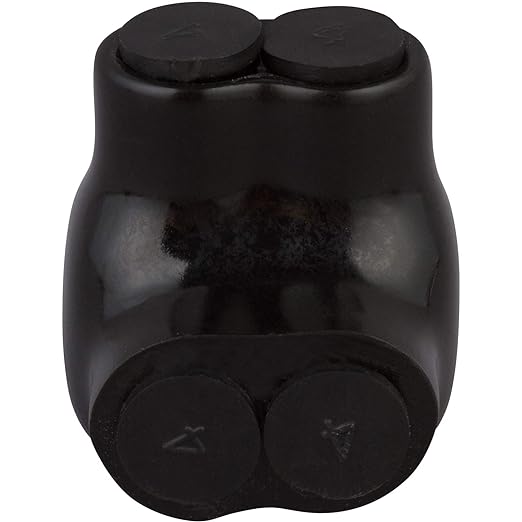

The Morris Products 97115 is an insulated two-conductor connector designed for easy cable splicing. This dual entry connector allows wire entry from either side, enhancing versatility. Constructed with high-dielectric rubber and vinyl coating, it ensures durability and safety in various environments. Pre-filled with oxide inhibitor, this connector is rated for six hundred volts. It is made from 6061-T6 Aluminum, which provides excellent corrosion resistance and electrical conductivity.

• Insulated with rugged high-dielectric rubber and vinyl coating.
• Allows easy re-entry for inspection and modifications.
• Suitable for use in troughs, gutters, panels, ducts, and wireways.

Product Highlights

Product Information

Standard Information

• Color: Black
• Connector Type: Dual Entry

Technical Specifications

• Conductor: Aluminum/Copper
• Conductor Size: 14 to 1/0 AWG
• Voltage: 600 VAC
• Allen Hex Size: 3/16 inches
• Temperature Rating: -49 to 194 degrees F
• Material: 6061-T6 Aluminum
• Electrical Supplies Type: Insulated Connectors
• Maximum Voltage: 600
• Wire Range: 1/0-14
• Number of Ports: 2
• UL Listed: Yes
• Part Number: 97115
• UPC: 601986971157
• Oxide Inhibitor: Pre-Filled
• Input Wire Range: 1/0-14
• Operating Temperature: -49°F to 194°F (-45°C to 90°C)
• Certifications: ANSI C119.4, UL 486B
• Environment: Dry Location
